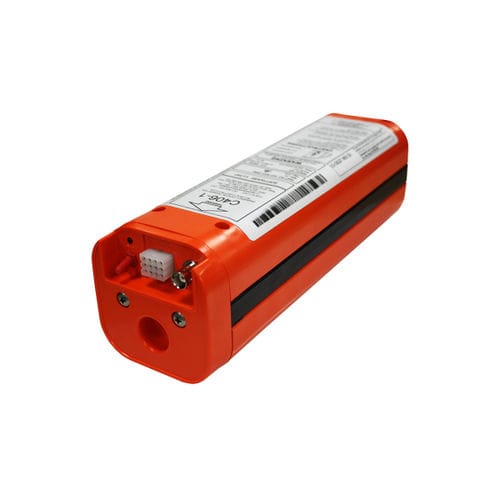

Helicopter ELT C406-1 HM series

helicopter ELT
helicopter ELT
helicopter ELT
helicopter ELT
helicopter ELT
Add to favorites
Compare this product


Characteristics

Applications
for helicopter

Description

The Artex C406-1 HM transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time. The C406-1 HM has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406-1 HM is available for use with Artex’s low cost whip antennas, rod antenna or a blade antenna. The C406-1 HM may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message. The C406-1 HM uses a single coax cable to accommodate all three frequencies. The C406-1 HM ELT is available for fixed wing with a single-directional G-Switch and helicopter (HM) applications with a multi-axis G-Switch. Immediate Search and Rescue response with completed registration Operating on 121.5, 243, and 406 MHz frequencies Worldwide coverage Compatible with ELT to Navigation Interface 5-year battery life (Replacement Battery Part No. 452-0133) If you use it…we’ll replace it, Free of Charge. Simply submit your story, send us back your used beacon so we can have it mounted on our Wall of Fame and we’ll send you a brand new beacon of equal or greater value. ARTEX ELTs are the choice of rotorcraft aircraft including Sikorsky, Airbus Helicopters, AgustaWestland and Bell. Certifications TSO C126 ETSO 2C126 Cospas/Sarsat Approved Transport & Industry Canada Approved

Catalogs

No catalogs are available for this product.

See all of ACR / Artex‘s catalogs
