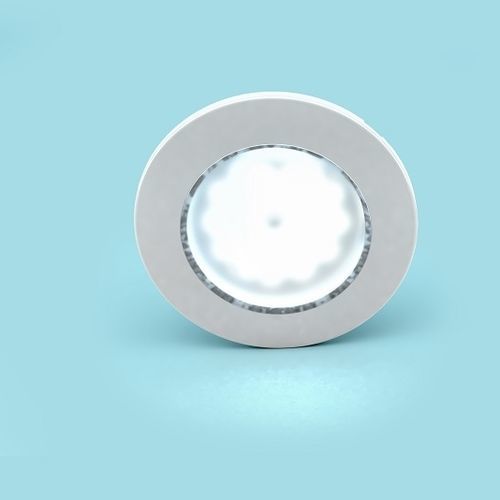

Airport light LD0110
LED

airport light
airport light
airport light
airport light
Add to favorites
Compare this product


Characteristics

Domain
for airport
Technology
LED

Description

LED Spot Lights LED Spot Lights, application designed for Airbus A318, A319, A320, A321, A330, A340, A350 and A380 Key features Electrical step dimming (0, 50 and 100%) PWM dimming (DC-version) protection against short-circuit, high temperature and inverse polarity pigtail Mechanical lamp covers (LC0111 Decor Ring) in various colour or metal coatings have to be ordered separately fully qualified acc. to RTCA-DO160 Other lens cover facette, diffuse, clear colour temperatures approx. 5,000 and 6,700 Kelvin MTBF > 50,000 OH Technical data Mechanical dimensions height: 15 mm diameter: 75 mm installation depth: 10 mm weight: 0.069 kg Electrical data voltage: 28 V DC or 115 V AC / VF 360-800 Hz power consumption: max. 2.8 W resp. 3 VA
