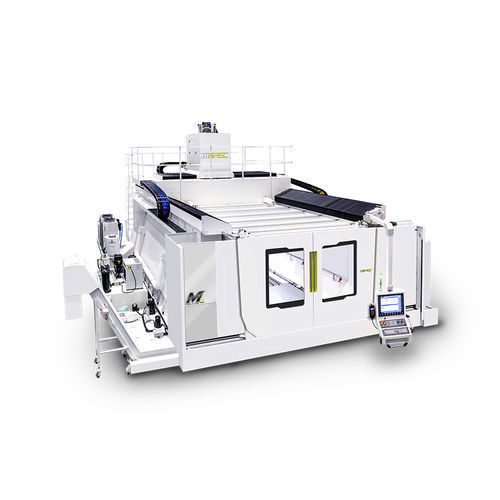

5-axis machining center GM series
with swiveling spindlegantryfor the aerospace industry

5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
with swiveling spindle
Other characteristics
for the aerospace industry, gantry
Rotational speed

24,000 rpm
(150,796 rad.min-1)

X travel

Min.: 3,000 µm

Max.: 8,000 µm

Y travel

2,500 mm, 3,200 mm, 4,000 mm
(98 in, 126 in, 157 in)

Z travel

1,000 mm
(39 in)

Description

-5-axis simultaneous machining -For mold machining -Box-in-Box structure design enhances machine rigidity and ensures the best accuracy performance for high-speed processing -X/Y/Z-axis driven by linear motor -Heightened column design for optimized working area Box-in-Box structure design enhances machine rigidity and ensures the best accuracy performance for high-speed processing The crossbeam and saddle are designed as box-in-box thermal symmetrical structure which gives good force flow transmission and prevents deflection. With perfect structural rigidity, the machine gives the best accuracy performance of high-speed machining and reduces thermal deformation and weight deformation greatly. X/Y/Z axis are designed with symmetric force structure .Dual driving units and equivalent uniform force at gravity center can ensure optimal surface quality and prolong tool life. Zero distance between gravity of the moving parts and the driving plane makes the gravity center closer to the driving plane. The machine stability could then be improved and the best machine rigidity could be ensured. X/Y/Z axis driven by linear motor X/Y/Z axis driven by linear motor provides excellent dynamics and static rigidity. The rapid feedrate of the axis is up to 60m/min and the acceleration is up to 0.5G ~ 0.7G. The structure is simple and easy to maintain without transmission power loss. Two-axis head driven by direct drive motor Excellent surface finish contour could be enhanced thanks to the high torque direct drive motor system of two-axis heads.Small size appearance is suitable for complex curved surface machining and the advantages include low error, high resolution and high speed.
