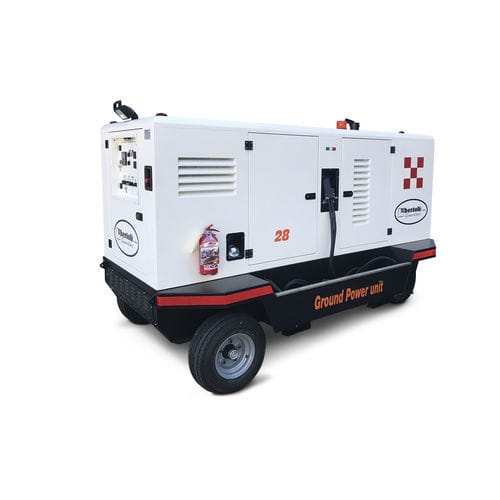

Mobile ground power unit D-AC120
trailer-mountedfor helicopterdiesel

mobile ground power unit
mobile ground power unit
mobile ground power unit
mobile ground power unit
mobile ground power unit
mobile ground power unit
Add to favorites
Compare this product


Characteristics

Type
mobile
Installation
trailer-mounted
Applications
for helicopter
Power source
diesel
Domain
runway
Other characteristics
DC, AC
Voltage

200 V

Frequency

400 Hz

Power

120 kVA
(163 hp)

Description

GPU 120 kVA – 400Hz: Power - 120 kVA Voltage - 115/200 Vac Voltage regulation - ± 1% Power Factor - 0,8 Output 115/200Vac 400Hz - N°1 Output 28,5Vdc - (Optional) ------------------------------- ENGINES FPT (IVECO): Stage 0 (Model:N45TM3) - 20F/120TNE @2000rpm // 18F/120TNE @1846rpm Stage III (Model:N45TE2P) - 18F/120TE @1846rpm Stage V (Model:N67TEVP08) 20F/120TEV - @2000rpm // 18F/120TEV @1846rpm Cummins: Stage III (Model:QSB 6.7) - 20C/120TE - @2000rpm // 18F/120TE @1846rpm Stage V (Model:B4.5) - 20C/120TEV @2000rpm // 18F/120TEV @1846rpm Deutz: Stage V (Model:TCD6.1L6) - 20D/120TEV - @2000rpm // 18F/120TEV @1846rpm ------------------------------ ALTERNATOR Power - 120 kVA Authorized overload: 110% of rated load for 1 hour in a 6 hours period 300% of rated load for 20sec ------------------------------ AC OUTPUT N° of outputs - 1 (120kVA) - The second one is Optional Connection - 3 phase 4 wire Voltage - 115/200Vac Frequency 400 Hz ------------------------------ DC OUTPUT (Optional) N° of outputs - 1 (28,5 Vdc) ------------------------------ CONTROL PANEL Protection - IP 54 Measure: Engine: oil pressure, water temperature, fuel level, speed, battery voltage, hour counter, alternator battery charger. 400Hz output: voltage, frequency, current, power kVA-kVAR-kW, Cosphi (measures phase to phase AND phase to neutral). 28Vdc output: voltage, current
