Robotic assembly machine FRAC
automaticrivetingflexible

robotic assembly machine
robotic assembly machine
robotic assembly machine
robotic assembly machine
robotic assembly machine
robotic assembly machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic, robotic
Technique
riveting
Other characteristics
for aeronautics, flexible

Description

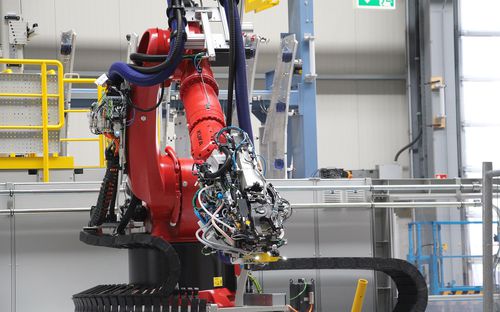

The Frame Clip Assembly Cell (FRAC) is a highly flexible and versatile system for automated drilling and fastening of different aircraft components and substructures (e.g. frame, clips, brackets) with most challenging requirements. Broetje-Automation provides a series of different end-effectors that are tailored to different conditions and requirements to enable highest throughput rates and maximum workpiece flexibility. FRAC systems are capable to be mounted on stationary or mobile robots as well as other positioning systems. They often combine several different end-effectors (e.g. drill-only end-effectors with automatic tool change combined with drillingand riveting multifunctional end-effectors). The systems therefore reach highest automation levels of more than 90% for all kinds of aircraft types. TECHNICAL DATA RIVETER Drill speed: 0 – 6.000 rpm Drill spindle feed: up to 98“/min / 2.500 mm/min Countersink repeatability: ± 0.002”/ ± 0.05 mm Material: Al/Ti / optional Composite Fastener diameter: 0,09” – 0,31” / 2.5 mm – 7.93 mm Cycle Time: up to 7 rivets/min Clamping force: 22 – 270 lbs / 10 – 120 daN Upset force: up to 10,116 lbs / 4,500 daN POSITIONER Positioning accuracy linear axis: ± 0.008“ / ± 0.2 mm Positioning repeatability linear axis: ± 0.004“ / ± 0.1 mm Work travel: X-axis: 670 inch / 17,000 mm (not limited) SPECIAL FEATURES Fully automated process Automatic Fastener feed and insert with all electric fastening system (AEFS) 8/16 slot fastener rack for various fastener sizes & types extendable with additional racks Multiple end-effectors for highest automation levels incl. automatic coupling system and automatic tool change
