Angular position sensor BPTU

non-contactanalog outputfor aircraft

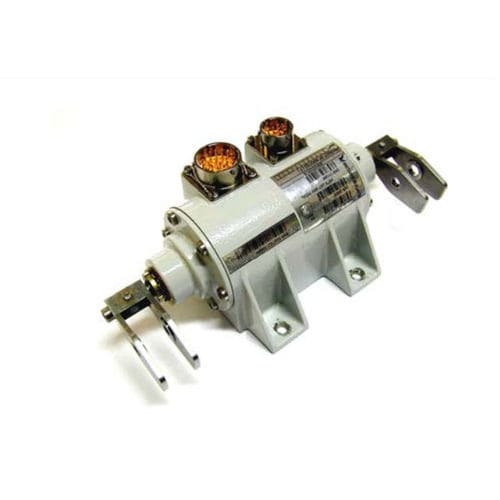

Brake Pedal Transmitters BPTU SeriesConverts an angular position into a DC voltage Voltage proportional to angular position Based on potentiometric technology Works / Operates in harsh conditions (aircraft braking systems) DESCRIPTION • Converts an angular position into a DC voltage • The voltage is proportional to the angular position • Based on potentiometric technology • Works / Operates in harsh conditions (aircraft braking systems) MAIN CHARACTERISTICS Dimensions 200 mm x 80 mm x 100 mm Weight 1 kg Angular stroke 70° Power Supply 5 to 28.5 VDC Output Ports 8 analog outputs Linearity +/- 2 % Design Two independent 4 track potentiometers Protection resistor 7.5 kΩ (optional) ENVIRONMENT Operating temperature: -55°C to + 85°C Environmental standards: RTCA / DO 160D / ABD0100 E APPLICATIONS Used on AIRBUS A380, A320 EM2, A340-500/600 for brake pedal position sensor.
