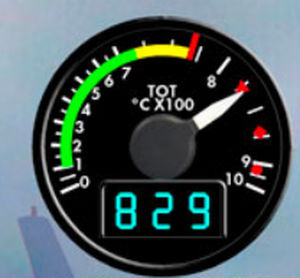

Temperature gauge PN 6100-206 Series
analogelectronicengine

temperature gauge
temperature gauge
Add to favorites
Compare this product


Characteristics

Type
temperature
Display
analog, electronic
Applications
engine
Domain
for aircraft

Description

SALIENT FEATURE - DIGITAL DESIGN - MICROPROCESSOR CONTROLLED - FAATSO (TECHNICAL STANDARD ORDER) APPROVED - ACCURACY ±0.5*C (T4) or ±0.5% (TRQ) AND (RPM)- OVER THE INDICATOR'S LIFE & TEMPERATURE RANGE OF-40 TO +70*C - DIGITAL RESOLUTION ±1*C (T4) or ±0.1% (TRQ) - POWER REQUIREMENTS - 28 VDC - 160 mAMAX INDICATOR OPERATES CORRECTLY AT 10 TO 40VDC - MTBF 30,000 HOURS - IN SERVICE PROVEN - THE ANALOG POINTER IS DRIVEN BY A HIGH RESOLUTION STEPPER MOTOR (0.9* / STEP) WITH 100.000 HOURS MTBF - T4 0RN1 NEEDS NO ADJUSTMENT OR CALIBRATION FOR LIFE OF THE INDICATORS - A SEMI-AUTOMATIC TORQUE CALIBRATION SYSTEM - SAVING SIGNIFICANT MAINTENANCE MAN HOURS - POSITIVE FAILURE INDICATION OF SIGNAL AND/OR POWER - MODULAR DESIGN OF HARDWARE & SOFTWARE - SUN LIGHT READABLE - LONG LIFE LED DIGITAL DISPLAY - OPTIONAL NVG COMPATIBLE - SOLID STATE TORQUE PRESSURE TRANSDUCER ILXCEEDANCE MONITORING ADVAK1AGES - PRE-WARNS FLIGHT CREW OF POTENTIAL EXCEEDANCE WITH DIGITAL ACCURACY OF ±0.5% - ELIMINATES COSTLY. UNNECESSARY INSPECTIONS AND REPAIRS WITH EXCEEDANCE PLAYBACK
