Inflight entertainment aircraft cabin display FD102CV-LP-S
1024 x 6001600 x 1200

inflight entertainment aircraft cabin display
inflight entertainment aircraft cabin display
Add to favorites
Compare this product


Characteristics

Applications
for inflight entertainment
Resolution
1024 x 600, 1600 x 1200
Size

10.2 in

Description

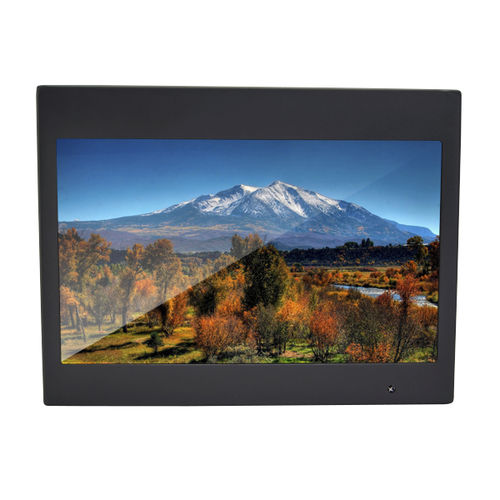

This high resolution Low Profile 10.2” Widescreen LCD is built with retrofit aircraft integration in mind. Description This 10.2″ Widescreen Low Profile LCD Display can switch between three video input sources using an infrared remote or the control buttons on the bottom face of the unit. It is perfect for cabin video and graphical entertainment. The FD102CV-LP-S has features that allow installation in the smallest of mounting areas with the minimum of interface equipment. The 10″ Widescreen LCD utilizes a state of the art digital video decoding chipset for the analog video input. The three video sources in order of picture quality are VGA (computer graphics, like Moving Maps), and two (2x) Composite Video (DVD, Camera or VCR). Both NTSC and PAL formats are auto-detected. The FD102CV-LP-S can also be connected to existing video switchers and can take a composite video input from a selector interface box. In this case, multiple input sources can be selected and displayed on the monitor. Specifications Display Dimension - 9.55”(W) x 7.30”(H) x 0.80”(D) Weight - 2 lbs 7 oz Power - 28VDC @ .3 Amps Operating Temperature - -20°C/60°C PC & Video Input - SVGA (Analog RGB 15 pin D-sub), 2 Composite Video Materials - Aluminum Brightness - 300 cd/m² Display Size - 8.67”(W) x 5.12”(H)
