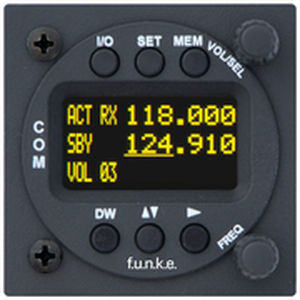

Radio transceiver ATR833 series

VHFfor aircraftpanel-mount

Complete VHF transceiver with 6 W output power in a 2 ¼ inch (57 mm) housing Digital signal processing directly after the 1st intermediate frequency Digital audio processing Very stable transmit power OLED display with high contrast Satisfies equipage requirement for 8.33 kHz channel spacing Dual-watch technology, monitoring of two frequencies Voice controlled intercom with automatic detection of microphone type, can be deactivated for use with external intercom Memory for 20 user-definable named frequencies Easy recall of the 10 last used frequencies The ATR833-II replaces the well-known ATR833 radio with the new channel separation of 8.33 kHz. Transmitter and receiver are a complete new development with state-of-the-art digital signal processing. The built-in voice controlled intercom operates up to 4 microphones (2 standard, 2 dynamic). In many cases no extra intercom is required. This saves cost and weight. All microphones are adjustable separately. Using suitable headsets a 4-place intercom can be built-up. The ATR833-II has 2 memory functions: Up to 20 frequencies can be stored together with an identifier. Moreover, the 10 last used frequencies can be recalled easily. The OLED display ensures a high contrast and is suitable for installations without direct sunlight. The ATR833-II can be remotely controlled using the ATR833RT remote control unit.
