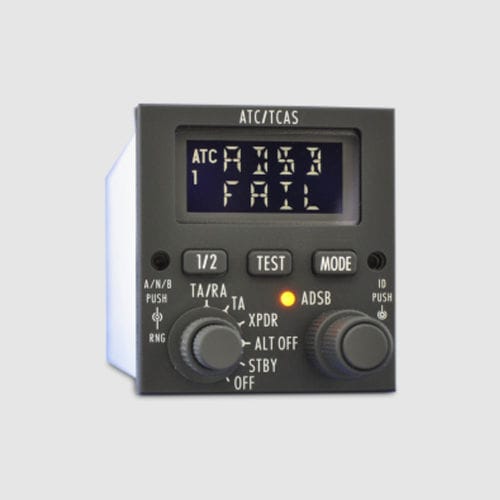

Aircraft TCAS G7614-990

Gables G7614 ATC/TCAS Series with Flight ID is now available with integral ADS-B failure annunciation. No need to install a separate ADS-B fail annunciator. Easily distinguish between a transponder failure and and ADS-B function failure. Available with ADS-B fault annunciation and Flight ID only, single/dual transponder, TCAS I and TCAS II A single panel solution to replace CTL92T and 92E. Compatible with DO-260B compliant transponders such as NXT-600/-700, TDR-94D, and Garmin GTX series. Drop-in replacement for CTL92/A and CTL92T with additional Flight ID capability in a one panel solution Pin compatible with CTL92T Interfaces with TDR-94D or MST-67A via rear connector pin First Minima Twisted Nematic (FMTN) LCD Display Blue/White LED display and panel lighting for higher reliability – White or amber color display and NVIS options available (variant dependent) Liquid splash-proof design Built-in-test (BIT) capability Flash technology to support bench-level reprogramming using a PC Non-volatile storage of front panel settings Modular design provides flexibility for custom layouts Modular construction contributes to economical maintenance Dual Mode-S control panel CSDB remote tuning with TDR interface ARINC 429 capable TCAS Options – Ranges: 3-5-10-15 (20-40 as extended ranges) nmi for MST mode 3-5-10-20-40 or 5-10-20 or 6-12 nmi for TDR mode – TA/RA, TA Selection – ABV/NORM/BLW – Traffic AUTO-ON – Functional Test – Altitude Limits: A = 2,700 ft B = 9,900 ft ATC Options – Altitude Reporting ON-OFF – ADC 1-2 selection
