Closed-circuit wind tunnel ECF

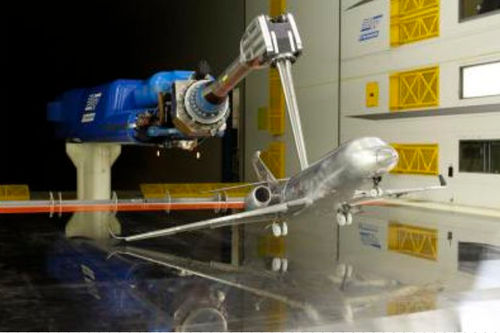

aeronauticalmodel support

THE ENGINE CALIBRATION FACILITY (ECF) IN MARKNESSE IS AN INDUSTRIAL CALIBRATION FACILITY OF WIND TUNNEL ENGINE SIMULATORS FOR THE LOW-SPEED AND HIGH SPEED DOMAIN. Type of Facility Engine model support frame connected to a vacuum system. MODEL SUPPORT External six-component balance (max thrust force: 3000N). Internal diameter of the engine model support frame: 500 mm. AUXILIARY SYSTEMS Compressed air supply: Capacity of 6 kg/s continuously at 80 bar. Drive air control with incremental steps of 0.0005 kg/s Vacuum system: Standard maximum engine total mass flow: 14.7 kg/s. Special provisions are available for increasing the maximal mass flow. Maximum Mach number: 0.93 Typical tests The calibration of engine simulators (e.g. thrust) under simulated wind tunnel conditions without external flow. For example: Turbofan Propulsion Simulators (TPS) Blown nozzles Through flow nacelles
