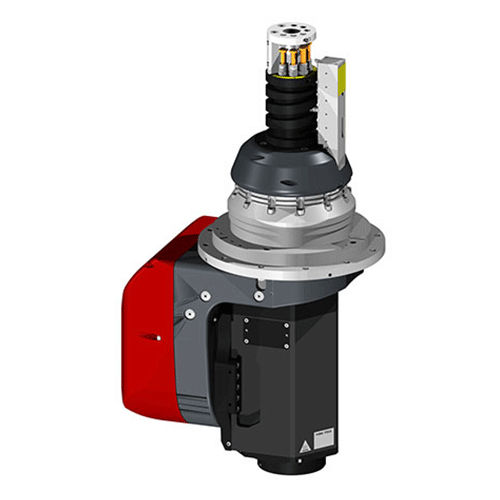

2-axis machining head HS300D
for the aeronautical industry

2-axis machining head
2-axis machining head
2-axis machining head
Add to favorites
Compare this product

Go to the HSD SpA website for more information

Characteristics

Number of axes
2-axis
Other characteristics
for the aeronautical industry

Description

HSD Axis Motorors. A Axis max torque: 270Nm; 480Nm C Axis stall/ Max torque C: 270Nm; 480Nm Clamping torque Axes brakes A; C: - Max speed Axes A; C: 75°/sec; 75°/sec** Measuring system accuracy A;C: 60 arcsec; 60 arcsec A;C Axes rotation: ±120°; ±220°(option ±240°) A;C Axes endless rotation (Slip Ring): no; option* Axis encoder: - Axes Brakes: - Weight: ~55kg *Only without Electrospindles Encoder SPINDLES AVAILABLE Torque S1-S6: 5,6Nm/6,9Nm Asyn; 8,7kW/10,3kW Synch Power S1-S6: 7/8,7kW Asyn; 11/13kW Synch Spindle Encoder: TTL/sincos ES368 HSK E40 Torque S1-S6: 3,4Nm/4,1Nm Asyn Power S1-S6: 6,5/7,8kW Asyn Spindle Encoder: TTL/sincos
