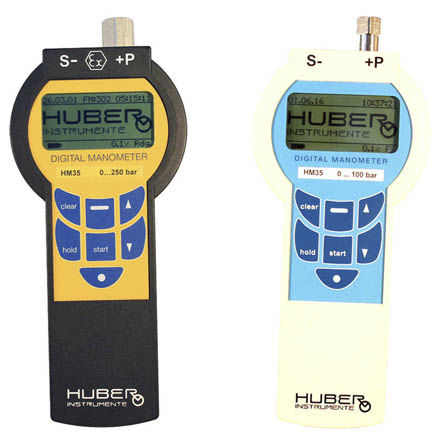

Pressure gauge HM35 / HM35 EX

digitalfuelfor aircraft

The most impressive feature of the HM35 and HM35 EX manometer is the versatile range of applications. It allows measurements in the area of gauge-, differential- or absolute pressure. The pressure measurements can be executed in either ovepressure or vacuum ranges. Pressure ranges from vacuum up to 250 bar available Symmetrical measuring ranges available Accuracy classes in 0.2% / 0.1% / 0.05% F.S. selectable Media-compatible devices available Ex versions available The EX-version meet the requirements for opearting in T3 (rechargeable batteries) and T4 (conventional batteries) temperature ranges. Pressure change rate MIN/MAX and average value Illuminated display Datalogger for up to 10000 measured values (interval is selectable) Via the infrared interface (IR), all data of the pressure measurements, can be transferred directly to a PC. Calibration software for Windows available 22 selectable measurement units Various accessories available for the HM35 Handheld Pressure Gauges > Hand operated pumps for pressure generation Wall mounts Leather cases Various connectors, like M10x1, NPT 1/8", 4/6MM... Complete service cases Our pressure measurement sensors for the HM35 series are Temperature compensated Long term stable
