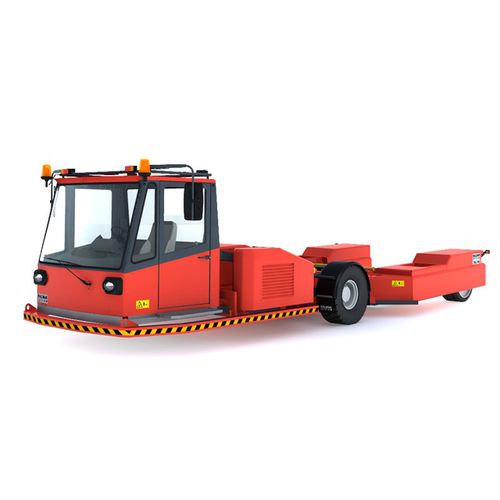

Towing tractor TBL 180
pushbackfor aircraftelectric

towing tractor
towing tractor
towing tractor
towing tractor
towing tractor
towing tractor
towing tractor
towing tractor
Add to favorites
Compare this product


Characteristics

Type
towing, pushback
Applications
for aircraft
Motor type
electric
Configuration
towbarless
Other characteristics
with cab
Domain
for airport
Towing capacity

23,000 kg
(50,706 lb)

Working speed

18 km/h, 30 km/h
(11.2 mph, 18.6 mph)

Description

TBL-180 is designed for push-back and intergate towing of aircraft from Fokker 28/A319/MD80 to B767/A300. The TBL 180 is the most popular tractor that has been manufactured in the largest numbers. It combines high performance with very low maintenance costs and straightforward conventional technology. An engine connected to a power shift transmission, working through prop shaft directly on drive axle. The docking device "cradle" is a unique Kalmar Motor design and is well known and proven all over the world. It allows docking without moving or lifting the aircraft. The cabin features air suspension and the driving position is 180° turnable. Examples of optional extras: Electrical heated windscreens Air conditioning Winter kit Automatic lubrication system DIMENSIONS AND WEIGHT Length: 7,800 mm Width: 3,000 mm Height: 2,050 mm Ground clearance: 100 mm Wheelbase: 2,660 mm Turning circle radius: 10,360 mm Dry weight: 8,050 kg ENGINE Make/Model: Deutz TCD 3,6 Type: 4-Cyl Euro Stage 3b, EPA Tier 4I Power output: 90 kW Cooling: Liquid cooled Fuel: Diesel TRANSMISSION Make/Model: DANA-Spicer T12000 Type: Torque converter powershift transmission Speed: 4 forward and 3 reverse AXLES Front: Make/Model: DANA-Spicer Tyre type/ dimension: Pneumatic 315/70 R15 Rear: Make/Model: Poclain individually suspensioned hubs Tyre type/ dimension: Solid 28x12x22
