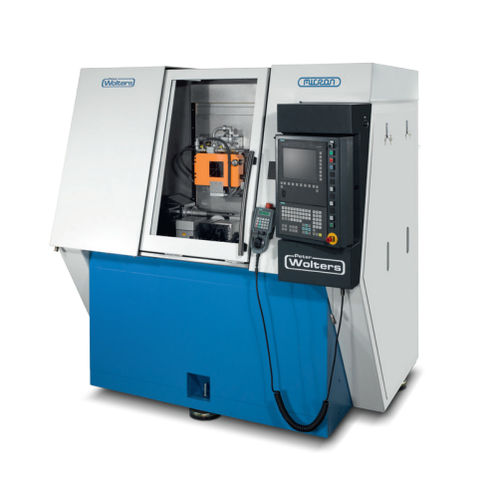

Aeronautic grinding machine MACRO
tool

aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
aeronautic grinding machine
Add to favorites
Compare this product


Characteristics

Other characteristics
for aeronautics, tool
X travel

600 mm
(24 in)

Y travel

350 mm
(14 in)

Z travel

300 mm
(12 in)

Spindle speed

3,200 rpm, 4,500 rpm, 16,000 rpm
(20,106 rad.min-1, 28,274 rad.min-1, 100,531 rad.min-1)

Description

The standard MACRO creep feed grinder provides a X-travel up to 600 mm long. The torque tube design machine base guarantees superior vibration dampening and thermal stability. Spindles are available with different speed and power ranges to best match the application. All spindles feature liquid cooled motors, and high speed HEDG spindles offer liquid cooled bearing packs as well. This further enhances thermal behavior and consistent production results. The MACRO series is characterized mainly by the following useful features - torque tube design - polymer concrete-filled machine bed - tool slides of the machine are made from cast iron - high stock removal rates achievable - efficient vibration damping - high thermal stability - water-cooled spindles and spindle drives - different rotary speeds and power levels available - stable temperature during grinding - consistently high part quality Small footprint, machine width only approx. 2.05 m (7 ft) Optimized rigidity for vibration dampening High removal rates Dependable part quality Compact design Maintenance friendly Efficient vibration dampening High thermal stability Water cooled spindle Spindles in different power classes available Grinding operations in up to five axes Stable temperatures during grinding Various types CNC controls available (standard: Siemens 840 D sl)

Catalogs

MACRO-S
MACRO-S
2 Pages
MACRO
MACRO
2 Pages
MACRO-L
MACRO-L
2 Pages
