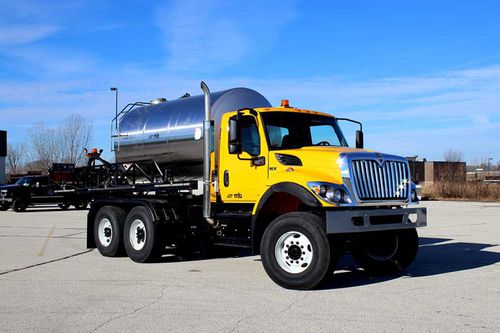

The 1250-gallon chassis mount can be an additional function on the MB5. Options can include a chassis mount de-icer, slip-in de-icer, stainless steel folding boom and more.
Spray nozzles and pump curves can be adjusted to cover up to an 18-foot path.
When deployed, the 38-foot spray bar applies fluid in a 40-foot pattern.
At a rate of 0.5 gallons per 1,000 square feet at 25 miles per hour with a spray width of 18 feet, the 1250-gallon tank enables the vehicle to anti-ice for 17 passes on an 8,000-foot runway without refilling.
At a rate of 0.5 gallons per 1,000 square feet at 25 miles per hour with a spray path 40-foot wide, the 1250-gallon tank enables the vehicle to anti-ice for over 8 passes on a 7,500-foot runway without refilling.
Equipment
Front Axle :
29,000 lbs
Rear Axle :
27,000 lbs
Wheelbase:
4WD
Drive Engine:
375 HP
Transmission:
Allison RDS 4000, 6 speed
Brakes :
ABS air brake control system (4-channel) with automatic traction control
Fuel Capacity:
Dual 75 gal fuel tanks
Tires :
445/65R22.5 LR L traction tread front and rear tires
Controls :
Cab integrated microprocessor CAN bus controls
Cab:
MB two-man air ride cab
Standard Accessories :
Side light bars
Heated windshield
High capacity cab heater
Heated power mirrors
Power windows
