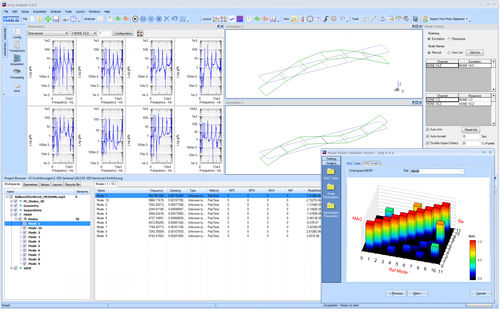

The Modal Analysis package is part of m+p Analyzer, m+p international's dynamic signal analyzer for noise & vibration measurements and analysis. It provides a complete set of tools for observing, analysing and documenting the vibrational behaviour of machines and mechanical structures. Software modules are available for classical and operational modal analysis, shaker measurements (SIMO and MIMO) as well as for ODS, SDOF and MDOF analysis. A modal model validation module is also provided. Analysis of structural dynamics in the automotive, aerospace, defense, consumer and other industries Experimental modal analysis Operational modal analysis Fixture analysis for environmental vibration test (for MILSTD 810F) Vibrational troubleshooting Structural Dynamics Modifications FE Model Validation and Updating Ground vibration testing The software makes it very simple to create the structure‘s geometry and calculate modal parameters including mode shape animation. The experimental modal data (frequency, damping and mode shape) are obtained by curve fitting a set of FRF (Frequency Response Function) measurements. FRFs can be directly measured or calculated from time records automatically. FRFs and time records can also be imported from other systems. Structural Dynamics Modifications and FE model correlation and updating are further optional tools. Wizard-Guided Modal Analysis Wizards take you through a simple series of steps to complete the modal acquisition and analysis process and also make intelligent estimates of all analysis options.
