materials analyzer / portable / for aeronautics

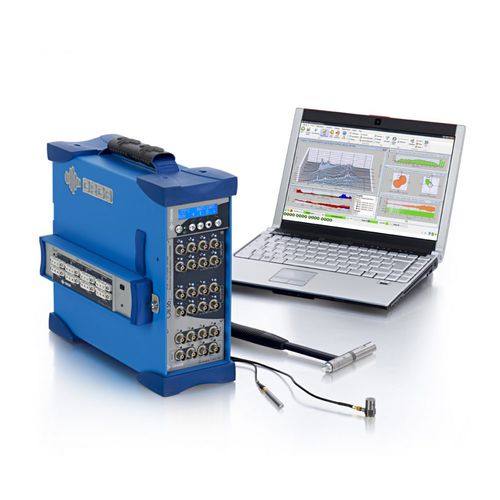

OR36 Oros



  • Other characteristics:


  • Configuration:


  • Other characteristics:

    for aeronautics


OverviewUp to 16 channels, OR36 is a synthesis of components usually used separately for measurements: analyzer, recorder, conditioners in a single portable instrument.With a comfortable computing power and its built-in Mobi-Disk, OR36 faces any measurement situation. It offers the capability of an advanced laboratory instrument in a modular, rugged and portable package. Teamwork TechnologyBased on a range of modular instruments, from 4 to 32 channels, the Teamwork technology enables to cascade or distribute the analyzers to measure up to 1000 channels. Instruments, conditioners and software licenses are exchangeable and flexible. Data are also easy to share thanks to the native technology.Main Features Rugged 4 to 16 channels chassis Portable: 5.2 kg (11.4 lbs) Up to 40 kHz and 25.6 kHz bandwidths 4, 8, 12 or 16 universal inputs ± 40 V range, 24 bits Dynamic: AC/DC/ICP®/Float/TEDS Parametric: 10 S/s 50 Hz and 60 Hz rejection Support expander modules (Xpod) for strain gauges and thermocouples 2 to 6 triggers/tachometers - 2 to 6 generator outputs 1 Gb/s Ethernet PC connection, LAN, WAN and wireless AC/DC power supply + internal battery 1 to 4 real-time computation ForceDSPs Stand alone recorder (D-rec) with removable 128 GB SSD
