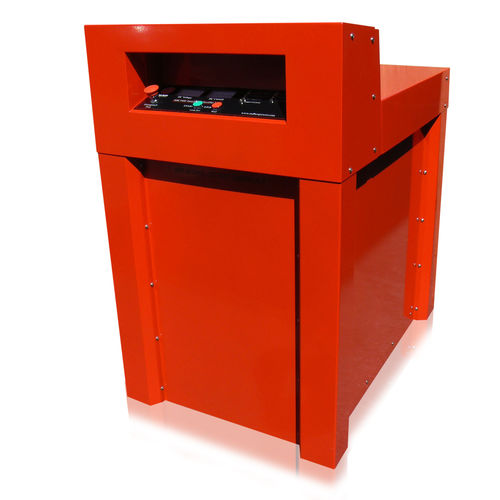

Fixed ground power unit RBC5650
for aircraftbattery-poweredlead-acid

fixed ground power unit
fixed ground power unit
fixed ground power unit
Add to favorites
Compare this product


Characteristics

Type
fixed
Applications
for aircraft
Power source
battery-powered
Battery type
lead-acid
Domain
runway
Other characteristics
AC/DC
Voltage

Max.: 460 V

Min.: 28 V

Frequency

50 Hz, 60 Hz

Description

The RBC5650 is designed to be extremely user friendly and offer excellent power to weight and size ratio. The RBC5650 is over powered; this means you can guarantee the power this unit offers. The RBC5650 provides up to 600 Amps continuously and up to 2000 Amps peak, it comes in an IP55 case and is capable of working at temperatures from -20°C to +50°C. The RSC5650 is designed specifically for offshore applications. The case is stainless steel marine coated and all the components are conformal coated. Peak Amps - 600 Maximum S/C Amps - 2000 Battery Type - Lead Acid Optional Extras Control Box The explosion rated box is fitted with a single output gland for the control cable. The box is fitted with a unit “Ready Lamp” showing the unit has power and is available. A “Start” button switches the output of the unit “On” and a “Power On” lamp illuminates when the power is On. A “Stop” button switches the output off and the “Power Off” lamp extinguishes. The box is be fitted with an “Emergency Stop” mushroom which when pushed will locks and stop the unit from functioning. The “Ready Lamp” then extinguishes. All Glands, Lamps and Buttons are explosion rated. Junction Box The explosion rated box is fitted with 2 input glands for the 2 x 400mm2 cables and 4 output gland for the 4 x 70mm2 cables. All Glands are explosion rated.
