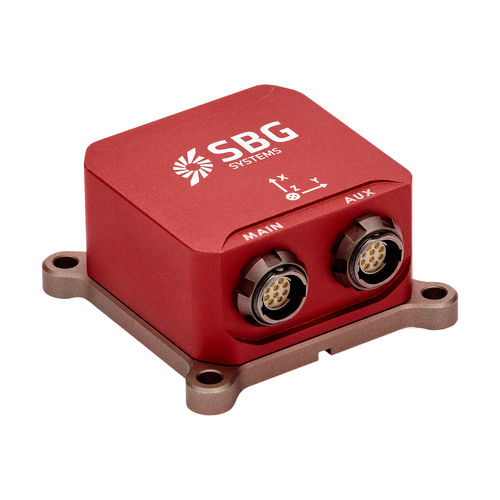

IMU inertial system Ellipse-E
INSbased on external GPS datafor avionics instruments

IMU inertial system
IMU inertial system
IMU inertial system
IMU inertial system
Add to favorites
Compare this product


Characteristics

Type
IMU, INS
Options
based on external GPS data, for avionics instruments, miniature, for drones

Description

Ellipse-E is a small-sized high performance Inertial Navigation System. It provides Roll, Pitch, Heading, and Heave, and computes Navigation data when connected to an external GNSS receiver. It accepts Odometer aiding to maintain the best accuracy in automotive environments. This light-weight sensor (49 grams) includes a MEMS-based Inertial Measurement Unit (IMU) and runs an enhanced Extended Kalman Filter (EKF) which fuses inertial and aiding information to provide accurate real time orientation and navigation data. High Accuracy for Such a Small Sensor: up to 0.05° Roll and Pitch over 360° (RTK) up to 0.2° Heading (RTK) 5 cm Real-time Heave, adjusted to the wave period up to 1 cm Position Key Features: Very Low Noise Gyroscopes 64-bit architecture for high end filtering processing Connection to external GPS and Odometer (DMI) IP 68 Enclosure 200 Hz Output Rate 2 years warranty
