IMU inertial system Ellipse-N
INSGNSSfor drones

IMU inertial system
IMU inertial system
IMU inertial system
IMU inertial system
IMU inertial system
IMU inertial system
Add to favorites
Compare this product


Characteristics

Type
IMU, INS
Options
GNSS, for drones, miniature
Temperature range

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

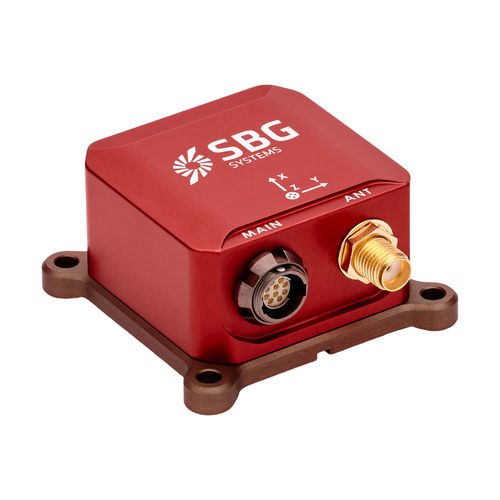

Ellipse-N is a small-sized high performance RTK Inertial Navigation System (INS) with integrated GNSS receiver. It provides Roll, Pitch, Heading, Heave, and Navigation data. This light-weight sensor includes a MEMS-based Inertial Measurement Unit (IMU) integrating three gyroscopes, three accelerometers, and three magnetometers. It embeds a dual-frequency RTK, Quad constellation GNSS receiver. Ellipse-N runs an enhanced Extended Kalman Filter (EKF) which fuses inertial data with GNSS, Odometer, and RTK corrections for excellent orientation and navigation data in the most challenging environments. Accuracy : 0.05° Roll and Pitch over 360° (RTK) 0.2° Heading (RTK with high dynamics) 5 cm Real-time Heave, adjusted to the wave period 1 cm GNSS Position Key Features: Very Low Noise Gyroscopes 64-bit architecture for high end filtering processing GPS / GLONASS / BEIDOU / GALILEO receiver Differential Corrections Post-processing Connection to Odometer 200 Hz Output Rate Accuracy and features are available in the IP68 box enclosure, or in the PCB-mounted 17-gram OEM version. 2 years warranty
