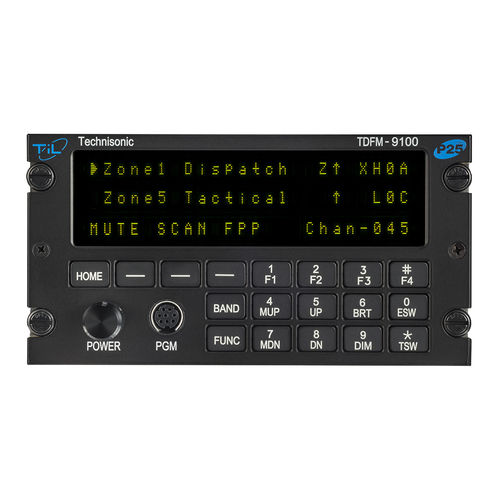

Radio transceiver TDFM-9100

VHFUHFfor aircraft

The TDFM-9100 is a multi-band airborne FM transceiver capable of supporting either one or two All-Band P25 modules. This versatile transceiver is the same physical size (3″ H) as the older (and now discontinued) TDFM-6000 series of radios. NVG Display is an available option. THE CAPABILITES ARE AS FOLLOWS: The new All-Band P25 module can support analog/digital operation on the full FM Band spectrum (VHF, UHF and 7/800) or can be configured to support operation on any mix of all three Bands, two bands or on any single band. The TDFM-9100 can support up to two (2) All-Band P25 modules in all the available configurations. Optional P25 Phase 1 (FDMA) and Phase 2 (TDMA) Trunking is also available. Radio modules can be individually configured to include any P25 options such as trunking, encryption, OTAR, etc. Optional Encryption protocols: AES, DES-OFB, DES-XL, DVP, DVP-XL. Standard ADP Encryption Available Multiple Encryption Keys: 64 Common Key Reference (CKR) or 16 Physical Identifier Reference (PID) keys. Each radio module can store 3000 channels and can be programmed to operate in digital or analog mode on a channel-by-channel basis. Each radio module independently supports SCAN across its entire frequency spectrum. Built-in audio switching allows multiple RF modules in either combined or separate transceiver configurations. Supports simulcast and cross-band repeat. Programming is via a Motorola APX CPS software program. Dimensions: 3.0” (H), 5.75” (W) and 8.5” (D) Max Weight 3.5 lbs.
