Non-contact laser scanner

for NDTfor aeronautics

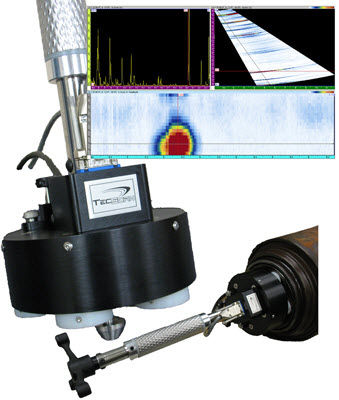

TecScan has developed an advanced ultrasonic solution for non-destructive testing of train axles. This solution includes a manual axle scanner and phased array technology. The scanner performs a full 360° rotation of the phased array probe around the axle axis. Making use of the multi-angle capabilities of the phased array technology, the scanner produces simultaneous pulse-echo inspections at all refraction angles, all areas of interest within the axle are therefore covered by a single scan. The inspection results are easy to understand, they are presented either in the form of sectorial scans showing all refraction angles, as B-Scans at some specific refraction angles or as C-Scans corresponding to specific areas of the axle.
