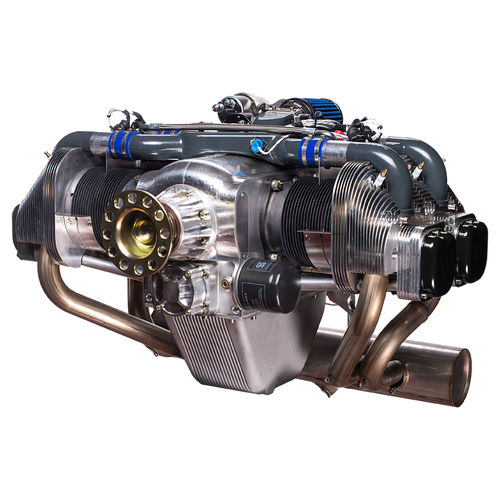

100 - 300hp piston engine UL260iS
50 - 100kgfor light aircraftfor ULM

100 - 300hp piston engine
100 - 300hp piston engine
100 - 300hp piston engine
100 - 300hp piston engine
100 - 300hp piston engine
100 - 300hp piston engine
100 - 300hp piston engine
Add to favorites
Compare this product


Characteristics

Engine power
100 - 300hp
Dry weight
50 - 100kg
Applications
for light aircraft, for ULM
Cycle
4-stroke
Number of cylinders
4-cylinder

Description

If you are limited in weight and dimension, but want more power, the ULPower 260iS with its 107 hp is an excellent choice. The UL260IS is basically an UL260i engine modified to a higher compression ratio. It runs on Avgas or Mogas 97/98. Displacement - 2592 cc [158.17 cu in] Bore - 105.6 mm [4.157 in] Stroke - 74 mm [2.913 in] Compression Ratio - 9.10 : 1 Firing Order - 1 - 3 - 2 - 4 Direction of Rotation - Clockwise - seen from cockpit Maximum Torque (ISA conditions) - 240 Nm [177 ft.lb] @ 2800 rpm DC output - 30 Amp (+/- 15 Amp available above engine/fuel pump needs) Oil capacity - 2.5 L [0.66 US gal] Fuel - Unleaded automotive gasoline with min. 97 oct. RON (89 MON = 93 AKI). AVGAS 100LL or Avgas UL91 may also be used if regular fuel is not available. The power and torque curve of the engine has been established by repeated dyno tests, which were performed at sea level and in weather conditions close to the ISA standard. The following graph shows the real, available power and torque coming from the crankshaft of the UL260iS engine corrected to the International Standard Atmosphere conditions at sea level. The following graph shows the power the UL260iS engine produces at a given manifold pressure (MAP) running at a particular rpm. When taking your MAP reading and corresponding RPM at cruising speed, the graph gives you a good idea of how much (little) power your aircraft actually needs in flight.
