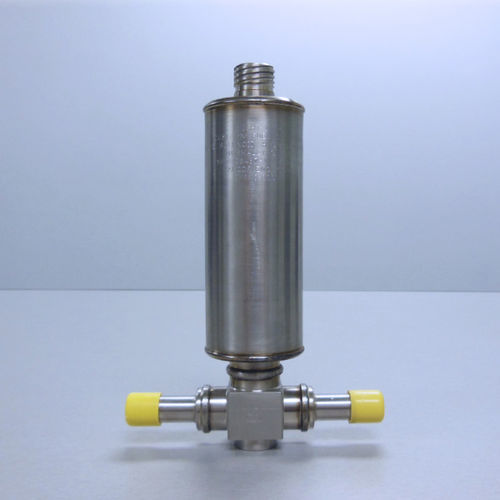

Aircraft solenoid valve V20000

for fuelfor air2-way

V20000 solenoid valves are designed to control high flows of fuel vapor and non-corrosive liquids and gases. The use of venturi-style coaxial flow path enhances the flow capacity of the valve for its size. They are well-suited for the extreme vibration, temperature, and cycle life requirements found in the most severe aircraft operating conditions. Valcor’s proprietary floating seal technology provides tight shut-off, long service life, and the ability to handle particulates in the fluid stream without leaking. They are direct acting and do not require system pressure to operate. V20000 valves are available in a normally closed or normally open configuration and are available in single or dual-stage coils. APPLICATION V20000 valves are typically used on aircraft APUs and engine onboard refueling vapor control systems. They are also suitable for many non-corrosive gases and liquids. FEATURES • Leak Rate: Internal is 0.5 cc/hr liquid, 15 cc/min gas. External is 0 cc/min at 750 PSIG • Electrical Connection: MS 3102A-10SL-4P side- mount standard • Wetted Materials: CRES 303, 430F, 302, Carbon, Fluorosilicone • MS or 1” OD tube end ports • Weight: 2.1 lbs. • Meets explosion proof test of MIL-E-5272
