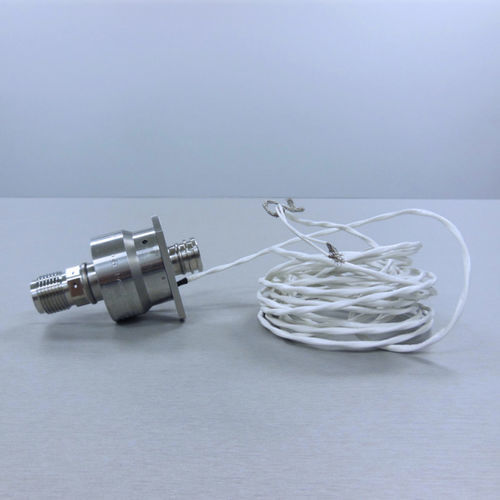

Aircraft solenoid valve V64000
for gas2-waynormally closed

aircraft solenoid valve
aircraft solenoid valve
aircraft solenoid valve
aircraft solenoid valve
aircraft solenoid valve
aircraft solenoid valve
Add to favorites
Compare this product


Characteristics

Applications
for aircraft
Media
for gas
Ports/positions
2-way
Function
normally closed
Other characteristics
compact, coaxial, plug, plunger
DN

1.5 in

Voltage

Max.: 30 V

Min.: 18 V

Pressure

2,250 psi, 3,000 psi

Max.: 1,500 psi

Min.: 0 psi

Temperature range

Max.: 250 °F
(121.1 °C)

Min.: 10 °F
(-12.2 °C)

Description

V64000 valves are direct acting, coaxial, poppet solenoid shut-off valves that are well-suited for the extreme vibration, temperature, and cycle life requirements found in the most severe satellite and spacecraft operating conditions. The compact size and low weight allow these valves to be used in the tightest space available. Its coaxial design allows for minimal pressure drop and use a poppet with a resilient seal for tight shut-off. These valves do not require system pressure to operate and are available in a normally closed configuration. APPLICATION V64000 valves are extensively used as thruster valves in missile and spacecraft applications where size and weight limitations are critical. These valves are available in single and redundant valve assemblies, and suitable for all propellants and inert gases (hot and cold gas). FEATURES • Leak Rate: Internal is 0 scc/h. External is 1x10-6 scc/s • Current: 1.5 amps at 30 VDC at 70°F; • Wetted Materials: 430, 302, 303, 304L, PTFE • 1/4” OD line • Fully customizable for your application
