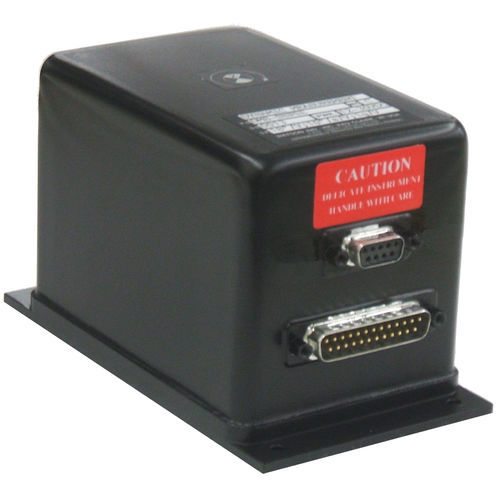

MEMS inertial system DMS-S605

MEMS inertial system
MEMS inertial system
MEMS inertial system
MEMS inertial system
MEMS inertial system
Add to favorites
Compare this product


Characteristics

Type
MEMS
Temperature range

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

This inertial measurement sensor provides bank and elevation attitude output along with leveled accelerometer outputs in a small hard-mountable housing. Features: Solid State, Strapdown System Six Accelerometer Outputs Small Size Low Cost, Low Power Rugged, High Reliability Analog and RS-232 Serial Outputs One Year Limited Warranty Engineering Support Originally developed to meet the needs of automotive testing professionals, the Dynamic Measurement System (DMS) was designed for instrumenting the drive and handling characteristics of vehicles. The DMS may be used in almost any application where triaxial angular rate and acceleration data is required. The sensor provides both angular rate and acceleration outputs in analog and digital formats. The DMS features six accelerometer outputs. The X, Y, and Z axis outputs represent the accelerations in the plane of the vehicle body, while the second set of three outputs measure the acceleration aligned with an earth-level coordinate system. This allows forward and lateral acceleration measurements that are essentially free of gravity influences. The triaxial sensor set allows software alignment of sensors, greatly reducing any alignment errors. The serial interface is highly configurable and provides access to almost all operational parameters. The DMS-S605 is a miniaturized version of the DMS-E604. This sensor uses MEMS gyros to make the instruments smaller and more economical. The E-series line of sensors uses our larger gyros for enhanced accuracy and signal stability. The DMS uses an input of forward velocity to compensate the long term references, allowing the error correction system to work continuously.

Catalogs

DMS-S605
DMS-S605
3 Pages
DMS-SGP01
DMS-SGP01
3 Pages
