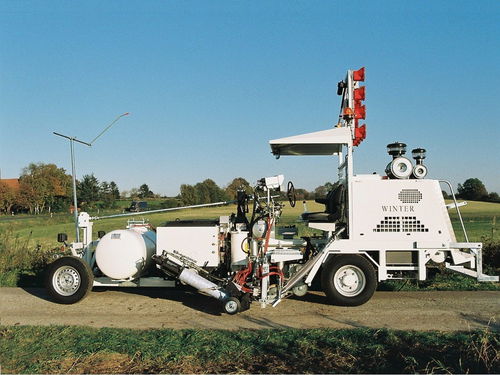

Self-propelled paint striping machine WPTE 1000 Kombi
for thermoplasticsfor runway

self-propelled paint striping machine
self-propelled paint striping machine
self-propelled paint striping machine
self-propelled paint striping machine
self-propelled paint striping machine
self-propelled paint striping machine
self-propelled paint striping machine
Add to favorites
Compare this product


Characteristics

Type
self-propelled
Material
for thermoplastics
Domain
for runway
Volume

410 l, 440 l
(108 gal, 116 gal)

Description

Engine - Kubota V3800 DI-T, 3800 ccm, 100 HP (74 kW), at 2600 r/min Fuel - diesel, capacity 75 liter Electrical system - 12 V, battery 90 Ah Steering - strong standard mechanical steering, on request hydraulic steering Drive / brake system - hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake Wheels - front: 185 R 14 – 5-hole-rim / rear: 215 R 14 – 6-hole-rim Compressor - 3-cylinder Boge compressor Typ SK 36, effective air supply 1465 l/min, mechanically driven by poly-v-belt Operating air pressure - 7 bar, silenced safety valve Paint pressure tank - with agitator, other container capacities on request Thermoplastic container - with agitator, other container capacities on request Paint pump - Airless type Graco 26 ltr./min., piston-type accumulator with pulsation damper Marker unit - on request, two units discless Extruder - automatic thickness control, different flap sizes available Additional equipment - on request, hand held spray gun with hose roller, on request, quick cleaning system for extruder head Glass bead equipment - on request, metering bead dispenser up to 300 mm Empty- / total weight - approx. 3200 kg / 4800 kg Dimensions Length x width x height - approx. 5,75 m x 1,40 m x 2,20 m (without equipment)
