Cargo tracks and restraint fittings
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}

■ PAX Seat Fittings Integrated function combined with an interesting strength-weight-ratio.
allsafe GmbH & Co. KG

■ Panel and Stanchion Fittings · Quick Change Gives you reliable and easy to lock and unlock connection for almost all applications. ■ Panel and Stanchion Fittings · Female Inch Thread Compact and standardized design meets high load ...
allsafe GmbH & Co. KG

Flush Fittings · Female Inch Thread For all applications with low and medium loads requiring fittings that do not protrude out of the seat track. Flush Fittings · Female Metric Thread Ideal for applications in A400M and NH90.
allsafe GmbH & Co. KG

Restraint Fittings Best in class: Sicherheit Made in Germany with computer controlled assembly and fulltrace ability. Different options make them custom-fit. High ultimate load meets various attachment opportunities. International standard ...
allsafe GmbH & Co. KG

allsafe is specialized in the design and production of cabin and cargo seat tracks. A state of the art machine park allows us to offer you a broad range of standard or custom made tracks. According to your needs we can offer various ...
allsafe GmbH & Co. KG

Airline Tracks for mock-ups Economical alternative to heavy and medium duty tracks for use in mock-ups, assembly stations or for transport purposes. Airline Tracksfor mock-ups are produced from commercial aluminium alloys and can be used ...
allsafe GmbH & Co. KG

Anchor Plates Ultimate load: vertical 17,78 kN / 4000 lbf horizontal 8,89 kN / 2000 lbf (with allsafe single stud fitting)
allsafe GmbH & Co. KG

DOUBLE STUD WITH RING Double stud with ring Product nr:FS 2000 AP Description:Double stud with pear ring for air cargo pallet and seat track connection, Fitting ISO 9788 Material:Steel Certification:ISO 9788 Diameter EXT /INT (cm):5,5 ...
GPI FORANKRA

HOOK FOR NETS Hook for nets, 1800 daN Product nr:40 084-16 Description:Hook for nets, 1800 daN / 4050 lbs, to securing nets Lenght (mm):92 Thickness(mm):12 Width (mm):46 Weight (gr):140 Material:Steel-Zinc plated Ultimate Service Load ...
GPI FORANKRA

HOOK FOR NETS Hook for nets, 2500 daN Product nr:GP 403 Description:Hook for nets, 2500 daN / 5625 lbs, to securing nets Lenght (mm):64 Thickness(mm):9 Width (mm):39 Weight (gr):77 Material:Steel-Zinc plated Ultimate Service Load DaN ...
GPI FORANKRA

SINGLE STUD WITH RING Single stud with ring Product nr:FS 700 Description:Single stud with ring for air cargo pallet and seat track connection, Fitting ISO 7166 Material:Steel Certification:ISO 7166 Diameter EXT /INT (cm):3,9 / 2,9 Ultimate ...
GPI FORANKRA

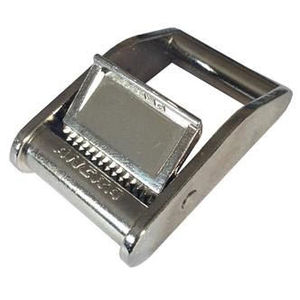

CAM BUCKLE Cam buckle, 250 daN Product nr:41 030-17 Description:Cam buckle, 250 daN / 560 lbs for 25 mm webbing Lenght (mm):54 Thickness(mm):20 Width (mm):33 Weight (gr):60 Material:Steel Nickel plated Ultimate Service Load DaN / ...
GPI FORANKRA

CAM BUCKLE Cam buckle, 700 daN Product nr:48 343-10 Description:Cam buckle, 700 daN / 1575 lbs, for 35 mm webbing Lenght (mm):60 Thickness(mm):27 Width (mm):35 Weight (gr):115 Material:Steel Ultimate Service Load DaN / lbs:700 / ...
GPI FORANKRA

CAM BUCKLE Cam buckle, 700 daN Product nr:42 195-10 Description:Cam buckle, 700 daN / 1575 lbs, for 25 mm webbing Lenght (mm):62 Thickness(mm):28 Width (mm):39 Weight (gr):120 Material:Steel--Zinc plated Conditionnement (pc):1
GPI FORANKRA

CAM BUCKLE Cam buckle, 250 daN Product nr:41 030-10 Description:Cam buckle, 250 daN / 560 lbs for 25 mm webbing Lenght (mm):54 Thickness(mm):20 Width (mm):33 Weight (gr):60 Material:Steel Ultimate Service Load DaN / lbs:250 / 560 Conditionnement ...
GPI FORANKRA

CAM BUCKLE Cam buckle, 1100 daN Product nr:40 880-19 Description:Cam buckle, 1100 daN / 2475 lbs, for 35 mm webbing Lenght (mm):74 Thickness(mm):40 Width (mm):63 Weight (gr):260 Material:Steel-Zinc plated Ultimate Service Load DaN / ...
GPI FORANKRA

OVER CENTER BUCKLE Over center buckle, 3100 daN Product nr:44 639-12 Description:Over center buckle, 3100 daN / 7000 lbs, for 45 mm webbing Lenght (mm):165 Thickness(mm):42 Width (mm):65 Weight (gr):580 Material:Steel-Zinc-plated Ultimate ...
GPI FORANKRA

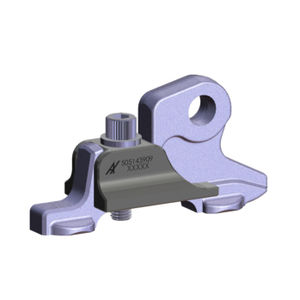

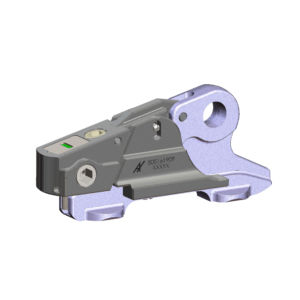

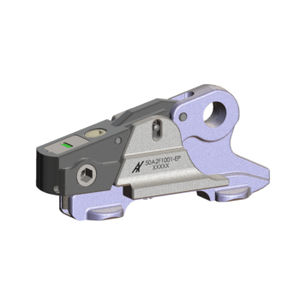

Characteristics Fitting class Quick Change Number of studs 3 Shear Plunger Yes Fxz (rear) or Fz (front) > 75 kN Components Material Treatment Body Stainless steel 17-4 Ph ...
ATTAX

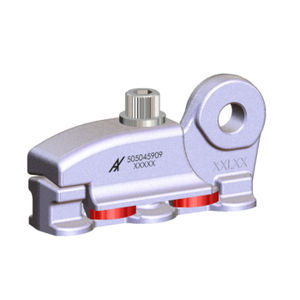

Fitting class Quick Change Number of studs 2 Shear Plunger No Fxz (rear) or Fz (front) > 50 kN Body Stainless steel 17-4 Ph per ASTM A693 Zinc Nickel Type II Grade B per AMS 2417 Plunger Aluminum ...
ATTAX

Characteristics Fitting class Quick Change Number of studs 2 Shear Plunger No Fxz (rear) or Fz (front) > 50 kN Body Stainless steel 17-4 Ph per ASTM A693 Zinc Nickel Type II ...
ATTAX

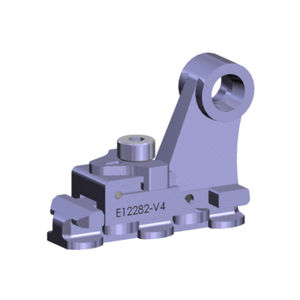

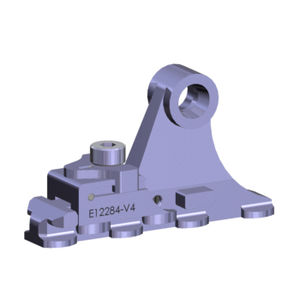

Fitting class Single Move Number of studs 3 Shear Plunger Yes Fxz (rear) or Fz (front) > 60 kN Body Steel 4140 per AMS 6349 Zinc Nickel Type II Grade B per AMS 2417 Plunger Steel ...
ATTAX

Characteristics Fitting class Single Move Number of studs 3 Shear Plunger Yes Fxz (rear) or Fz (front) > 60 kN Body Steel 4140 per AMS 6349 Zinc Nickel Type II Grade B per AMS ...
ATTAX

Characteristics Fitting class Single Move Number of studs 4 Shear Plunger Yes Fxz (rear) or Fz (front) > 60 kN Body Steel 4140 per AMS 6349 Zinc Nickel Type II Grade B per ...
ATTAX

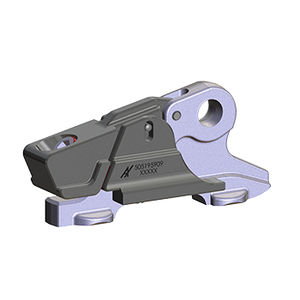

Characteristics Fitting class Torqued Number of studs 3 Shear Plunger Yes Fxz (rear) or Fz (front) > 60 kN Body Steel 4140 per AMS 6349 Zinc Nickel Type II Grade B per AMS 2417 Plunger Steel ...
ATTAX

Characteristics Fitting class Torqued Number of studs 2 Shear Plunger No Fxz (rear) or Fz (front) > 50 kN Body Stainless steel 17-4 Ph per ASTM A693 Zinc Nickel Type II Grade ...
ATTAX

Characteristics Fitting class Torqued Number of studs 2 Shear Plunger No Fxz (rear) or Fz (front) > 50 kN Body Stainless steel 17-4 Ph per ASTM A693 Zinc Nickel Type II Grade ...
ATTAX

Characteristics Fitting class Torqued Number of studs 3 Shear Plunger Yes Fxz (rear) or Fz (front) > 70 kN Body Stainless steel 17-4 Ph per ASTM A693 Zinc Nickel Type II Grade ...
ATTAX

Technical specifications DOUBLE STUD FITTING – FT024402 Drawing In accordance with ISO 9788 P/N. AERO NET: FT 024402 Ultimate Load: 5.000 Lbs / 2225 daN in all directions Breaking strength: 2250 daN minimum Dimensions: Body & plunger ...
AERO NET

In accordance with ISO 9788 P/N. AERO NET: FT 024401 Ultimate Load: 5000 Lbs / 2225 daN in all directions Breaking strength: 2250 daN minimum Dimensions: Body & plunger in acc. with figures 1, 2, 3 of ISO 9788 Weight: 100 g Material: ...
AERO NET

DOUBLE STUD FITTING WITH PEAR RING In accordance with ISO 9788 P/N. AERO NET: FT 024403 Ultimate Load: 5000 Lbs / 2225 daN in all directions Breaking strength: 2250 daN minimum Dimensions: Body & plunger in acc. with figures 1, ...
AERO NET

Descriptif : Forged hook Material : zinc plated Load capacity : 2 500 Kg / 5 500 Lb Weight : 162 g / 0.357 lb
AERO NET

SINGLE STUD FITTING In accordance with MS 33601 & ISO 7166 P/N. AERO NET: FT 0135 Ultimate Load: 2000 Lbs / 900 daN in all directions Dimensions: Stud in acc. with ISO 7166 Weight: 55 g Material: - Stud: steel - Cradle: aluminium - ...
AERO NET

Anchor Plates — For use with single stud cargo fittings only. Attachment point for nets and tie downs. Its smooth, low profile design provides protection from damage to cargo and baggage. Fittings secure easily into these plates 40000-11 ...
Ancra International

Aircraft Seat Track — Standard aircraft track is used in the securement of cargo and interior assemblies. Made from 7075-T6 aluminum alloy extrusion to meet specification MS 33601 and ISO 7166. Available in heavy and medium duty. 40456-10-144 ...
Ancra International

Threaded Studs — These multi-purpose, semi-permanent interior track fittings are specifically designed to be threaded into the part to be mounted. Designed as an interior tie down incorporating a steel stud and retainer for use where ...
Ancra International

Quick Connect Seat Attachment Fittings — Designed to quickly attach seat legs to track and meet airframe manufacturers’ specifications and passenger seat manufacturers requirements. Available for both front and rear seat leg applications. ...
Ancra International

Overcenter Buckle — This unique 1" buckle features both simplicity and easy operation. Tension is applied by pulling web handhold and rotating lever. The lever is self-closing and will automatically rotate to full closed, detent position. ...
Ancra International
