Aircraft wheels

10" x 10" wheel is 16 pounds and made out of aluminum. Each wheel is sold individually. This wheel is most often purchased with or for 4-ply 29" Airhawk tires or 6-ply 8.50x10s. This is a modern, significantly advanced version of the ...

10" X 6.50" wheel specifically designed for and most commonly purchased with 35" Alaskan Bushwheels.* Made from casted aluminum, one wheel weighs 13 lbs. Each wheel is sold separately. Be sure to indicate your axle size before purchasing. *Note: ...

3-bolt, 1 1/2" axle, aluminum direct replacement for the Cleveland 199-62 wheel and brake kit. Kit comes with (2) ABI 40-75D 6" wheel assemblies and (2) ABI 30-52N brake assemblies (including bearings, races, bolts, etc). The ABI-199-62 ...

6-bolt 1 1/2" aluminum PMA'd direct replacement for a Cleveland 199-62A wheel and brake kit. Kit includes (2) ABI 40-75T 6" wheel assemblies and (2) ABI 30-52N brake assemblies (including bearings, races, bolts, etc). The ABI-199-62A ...

6-bolt, 1 1/4" axle, aluminum direct replacement for the Cleveland 199-71 wheel and brake kit. Kit comes with (2) ABI 40-60 6" wheel assemblies and (2) ABI 30-60A brake assemblies (including bearings, races, bolts, etc). The ABI-199-71 ...

Alaskan Bushwheel (ABI) replacement ABI-40-60 wheel assembly. This ABI six-bolt, 6" wheel fits a 1.25" axle. Each wheel is sold individually. Made from aluminum for enhanced corrosion resistance and longevity. FAA/PMA approved for ...

Alaskan Bushwheel (ABI) replacement 40-75T 6" wheel assembly. The ABI-40-75T fits a 1.5" axle. Each wheel is sold individually. Made from aluminum for enhanced corrosion resistance and longevity. FAA/PMA approved for use in ABI-199-62 kits.

199-62 Cleveland wheel and brake kit. - 3 Bolt 6.00 x 6" - 1 1/2" axle Sold as a set. Want a better all around option? Check out the comparable ABI-199-62 Alaskan Bushwheels (ABI) Wheel and Brake Kit.

DESCRIPTION 199-62A Cleveland wheel and brake kit. - 6-Bolt, 6.00" x 6" - 1 1/2" axle Want a better all around option? Check out the comparable ABI-199-62A Alaskan Bushwheels (ABI) Wheel and Brake Kit.

199-71 Cleveland wheel and brake kit. - 6-bolt 6.00" x 6" - 1 1/4" axle Sold as a set. Want a better all around option? Check out the comparable ABI-199-71 Alaskan Bushwheels (ABI) Wheel and Brake Kit.

THE WORLD'S LIGHTEST IN CLASS Static load rating of 418 lbs (190kg) size : 3.50-4 single-piston brake caliper Lightweight floating disc Suitable for light aircraft, up to 350kg (roughly 330 to 770 pounds)

Static load rating of 1,430 lbs (650kg) sizes : 5.00-5 and 4.00-5 2 piston standard brake Lightweight stainless steel disc Suitable for LSA/gliders/experimental Aircraft tubeless

Static load rating of 1,430 lbs (650kg) sizes : 5.00-5 and 4.00-5 HE caliper 2 piston with cooling thins + 40% braking torque 2 types of high strength discs Insulated full metallic brake pad Caliper EA-002: ...

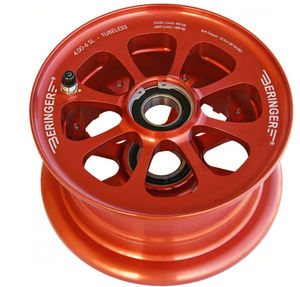

These new SL wheels were designed with the new technology improvements made possible thanks to the BERINGER static and dynamic test benches. Static load rating increased up to 935 lbs (425kg) to fit Aircraft up to 850kg (gross weight) ...

Static load rating of 2,090 lbs (950kg) size : 6.00-6 HE caliper 2 piston with cooling thins doubled braking torque compare to SL series 2 types of high strength discs Insulated full metallic brake pad ...

Double pivot system, lockable from the cockpit: Unlocked: the tailwheel is free to castor for taxiing. Steering is accomplished using the brakes on the rudder pedals. Locked: the tailwheel is locked to the rudder for take off and landing. ...

Bush Tail wheel nose wheel for LSA ULM High load rating Cantilever OR fork mounting Perfect for ultralight aircraft/lsa tubeless

For homebuild Aircraft tubeless

for ultralight Aircraft and LSA tubeless see complete nose wheel kits on our catalog

Bush Tail wheel nose wheel for LSA ULM High load rating Cantilever OR fork mounting Perfect for ultralight aircraft

RIM 001 – WHEELS and BRAKES Rim - Part No. 001 Size 4.00 – 6“ Load max. 1150 kg – 2535 lbs Static load 425 kg – 930 lbs Brake disc 400-522 6 x screw – torque 10 Nm Weight of the wheel 2450 g (without screws)

Rim - Part No. 002 Size 3.50 – 4“ Load max. 525 kg – 1157 lbs Static load 185 kg – 407 lbs 5 x screw – torque 6 Nm Weight of the wheel 750 g (without screws)

RIM 003 – WHEELS Rim - Part No. 003 Size 4.00 – 6“ Load max. 1150 kg – 2535 lbs Static load 425 kg – 930 lbs 6 x screw – torque 10 Nm Weight of the wheel 1.55 kg (without screws)

RIM 004 – WHEELS Ráfek / Rim - Part No. 004 Size 4.00 – 6“ Load max. 1150 kg – 2535 lbs Static load 425 kg – 930 lbs 6 x screw – torque 10 Nm Weight of the wheel 1.60 kg (without screws)

800x4 Wheel — Direct replacement for B.F. Goodrich/Hayes 800x4 P/N 840, 841 & 841A split-rim wheels

A lighter weight version of our standard 50 series wheel & brake combo for aircraft with a gross weight of 1,600 pounds or less.

Our most popular 5" wheel and brake combo. Used on many aircraft with a gross weight of 2,500 pounds or less.

The perfect choice for heavy aircraft and/or aircraft with high landing speeds. The same wheel as the 50 series, but with heavier brake discs and calipers for greater stopping power.

Fits standard 600x6 1-1/2" axle Brake Calipers utilize standard 066-105 brake linings and standard O-ring seals Brake Discs are machined from a one piece forging Discs are heat treated for longer life Static Load Rating: 1,750 pounds per wheel

Fits standard 600x6 1-1/2" axle Brake Calipers utilize standard 066-105 brake linings and standard O-ring seals Brake Discs are machined from a one piece forging Discs are heat treated for longer life Static Load Rating: 1,750 pounds per wheel

Fits 1-1/4" Cub-type axle Brake Calipers utilize standard 066-111 brake linings and standard O-ring seals Brake Discs are machined from a one piece forging Discs are heat treated for longer life Static Load Rating: 1,250 pounds per wheel

Fits 1-1/4" Cub-type axle Brake Calipers utilize standard 066-111 brake linings and standard O-ring seals Brake Discs are machined from a one piece forging Discs are heat treated for longer life Static Load Rating: 1,250 pounds per wheel

Fits standard 600x6 1-1/2" axle Brake Calipers utilize standard 066-111 brake linings and standard O-ring seals Brake Discs are machined from a one piece forging Discs are heat treated for longer life Static Load Rating: 1,250 pounds ...

Fits standard 600x6 1-1/2" axle Brake Calipers utilize standard 066-111 brake linings and standard O-ring seals Brake Discs are machined from a one piece forging Discs are heat treated for longer life Static Load Rating: 1,250 pounds ...
