Überwachungs-Frässpindel SPINJET

Kühlung

Résumé produit

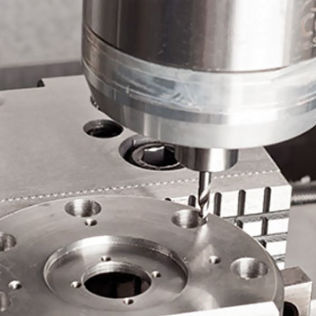

The SPINJET coolant driven spindle is a coolant-powered High Speed Machining (HSM) spindle that uses the machine's existing coolant flow to rotate the HSM jet spindle without any additional energy source. It is designed for compact, high-speed operations (milling, drilling, engraving, chamfering, grinding, etc.) and includes wireless real-time RPM monitoring to optimize machining according to actual rotational speed.

Principales caractéristiques

• Drive type: Coolant-driven (uses machine coolant flow as rotation energy)
• Wireless real time RPM monitoring to optimise cutting conditions according to actual spindle speed
• Available RPM options for typical machine integration: 20,000; 30,000; 40,000 RPM (product pages mention 20K, 30K, 40K)
• Worked materials guidance from page: milling steel up to 3.0 mm depth of cut and milling aluminum up to 6.0 mm (application examples)
• Plug & Play design: easy to connect and install in machine tool magazine
• Compact HSM spindle for small-diameter, high-speed tooling and operations

Montages et compatibilités

• Modular ER32 shank collet chuck with special tightening nut — suitable for standard tool holders with an ER32 seat
• Integral options / adaptations listed: HSK A63; C 5 & 6; BT 30 & 40; CAT 40; DIN69871 40
• Compatible with standard ER11 collets for tool clamping (for the tool itself)

Avantages opérationnels

• Permet d'atteindre très haute vitesse de rotation sur des machines ne disposant pas d'une broche HSM dédiée
• Réduit le temps d'usinage sur petites opérations HSM (4-5× plus rapide selon la page)
• Optimisation du processus en fonction du RPM réel via monitoring sans fil
• Utilise le circuit de liquide de coupe existant — pas de source d'énergie additionnelle requise

Applications types

• Milling (steel, aluminum) — exemples indiqués sur la page
• Drilling, engraving, chamfering, grinding, thread milling (visuels et vignettes d'opérations sur la page)

Notes techniques et recommandations
The system performance depends on available coolant pressure and flow on the machine; actual achievable RPM depends on coolant parameters and spindle configuration. Wireless RPM data is used to adjust cutting conditions to the effective spindle speed in real time.

Caractéristiques / spécifications techniques

• Marque : ISCAR
• Dénomination commerciale : SPINJET
• Type : Coolant driven HSM spindle (no external power)
• Surveillance : Wireless real time RPM monitoring
• Plages RPM mentionnées : 20,000; 30,000; 40,000 rpm
• Capacités indicatives d'usinage (exemples page) : Milling steel up to 3.0 mm; Milling aluminum up to 6.0 mm
• Montages disponibles : Modular ER32 shank collet chuck; Integral: HSK A63, C5 & C6, BT30 & BT40, CAT40, DIN69871 40
• Compatibilité outils : compatible with standard ER11 collets for tool clamping (tool-side)
• Installation : Plug & Play — conçu pour être facile à connecter dans un magasin d'outils
