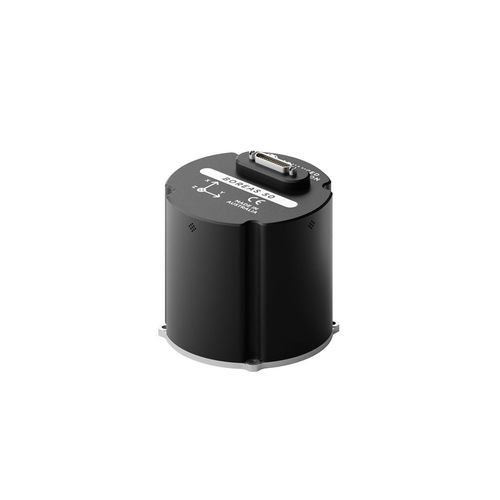

INS inertial system Boreas D50

AHRSgyroscopicwith integrated dual-antenna GPS

Overview
The Boreas 50 Series is a compact, rugged inertial navigation system with a north-seeking gyrocompass that maintains reliable navigation in GNSS-denied and harsh environments.

Key performance highlights
Horizontal Position Accuracy (GNSS RTK): 0.01 m
Roll & Pitch Accuracy: 0.03 °
Heading Accuracy (Gyrocompass): 0.5 ° × sec(lat)

Variants

• A50 provides heading and orientation as an AHRS and INS.
• D50-X20P dual-antenna all-band GNSS receiver.
• D50-MX5 dual-antenna multi-band GNSS receiver with Electronic Protection for resilience against jamming and spoofing.

Features

• FOG technology: Boreas 50 uses a fiber optic gyroscope (FOG) with a closed-loop optical coil and advanced spread-spectrum digital modulation to deliver high accuracy, stability and reliability while minimising size, weight and power.
• Gyrocompass north-seeking: determines accurate heading from the Earth’s rotation without GNSS or magnetometer input; works in static and dynamic conditions including high latitudes.
• Rugged reliability: designed and tested to environmental and electromagnetic standards including MIL-STD-461G and MIL-STD-810H; precision aluminium enclosure rated to IP67; resilient to shock and vibration.
• Industry-leading SWaP-C: compact, lightweight design optimised for Size, Weight, Power and Cost.
• Multi-protocol and multi-interface support: supports ANPP, NMEA 0183, CANopen and other industry-standard and proprietary protocols; interfaces include Ethernet, CAN, RS232/RS422, GPIO and 1PPS; built-in responsive embedded web interface for full device access.
• Aiding and logging: supports aiding sensors such as odometer, DVL/USBL, air data, zero-velocity updates and GNSS aiding; internal storage supports up to one year of data logging.

Certifications and environmental
Designed to MIL-STD-461G and MIL-STD-810H; IP67 waterproof and dustproof enclosure; operational across a wide temperature range for extreme conditions.

Media and downloads
Datasheet, reference manuals and performance report available from product downloads and documentation resources.

Specifications

• Position
  Horizontal Position Accuracy (GNSS RTK): 0.01 m (CEP50)
• Orientation
  Heading Accuracy – Gyrocompassing (GNSS denied): 0.5 ° × sec(lat), 1σ (≈ 0.7 ° RMS at 45° latitude)
  Roll & Pitch Accuracy – Gyrocompassing (GNSS denied): 0.03 ° RMS
  Heading Accuracy – Dual GNSS Antenna: 0.01 ° RMS (0.1 ° RMS with 1 m baseline; 0.01 ° RMS with ≥ 2 m baseline)
  Roll & Pitch Accuracy – Dual GNSS Antenna: 0.03 ° RMS
  Heading Accuracy – Dynamic Motion (with GNSS aiding): < 0.1 ° RMS (typical)
  Roll & Pitch Accuracy – Dynamic Motion (with GNSS aiding): 0.03 ° RMS
• Gyroscope
  Null bias: 0.5 °/hr (1σ)
  Scale factor error: 50 ppm (max)
  Range: ± 490 °/s (other ranges available on request)
  Bias instability: 0.05 °/hr (max)
• Accelerometer
  Null bias: 30 mg (1σ)
  Scale factor error: 300 ppm (max)
  Range: ± 10 g (other ranges available on request)
  Bias instability: 10 μg (max)
• Hardware
  Dimensions: A50 94 × 94 × 85 mm; D50-X20P / D50-MX5 94 × 94 × 95 mm
  Weight: A50 850 grams; D50-X20P / D50-MX5 910 grams
  Power consumption (typical): 10 W
  Input operating voltage: 9 to 36 V
  Operating temperature: -40 to 75 °C
• Pressure sensor
  Range: 30 to 125 kPa
• Protocols & aiding
  Advanced Navigation Packet Protocol (ANPP): Yes
  NMEA 0183: Yes
  CANopen: Yes
  1PPS: Yes
  Aiding sensor protocols: odometer, DVL/USBL, air data, zero velocity, NMEA input/output, GNSS
• Interfaces
  1 × Ethernet
  1 × RS232/RS422
  1 × CAN
  2 × GPIO
  1 × 1PPS
• Environmental & compliance
  Rugged aluminium enclosure rated IP67; tested to MIL-STD-461G and MIL-STD-810H for electromagnetic and environmental resilience
