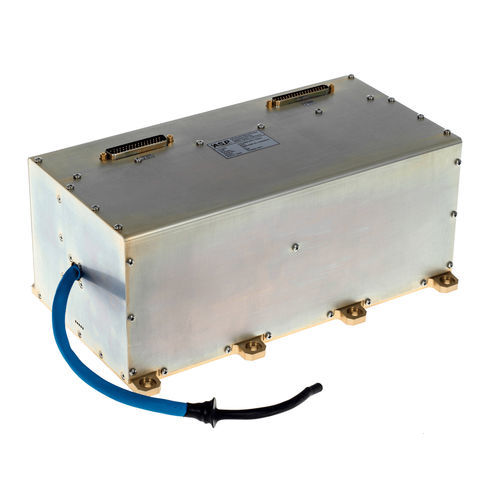

Satellite payload power supply EPC
DC/DC

satellite payload power supply
satellite payload power supply
Add to favorites
Compare this product


Characteristics

Applications
for satellite payload
Type
DC/DC
Input voltage

Min.: 24 V

Max.: 44 V

Output voltage

10 kV

Description

Radar applications in space open up a wide range of imaging possibilities. For the corresponding high-voltage supplies, ASP applies modern power electronics and achieves maximum performance in all essential aspects with optimal topologies. For these devices, the development focus was on significant weight reduction with high form factor requirements. Details: Output power (average): 750 W (average) 6 kW (peak) Duty cycle: 12.5% (PRF 3.8 to 4.2 kHz / PW 10 to 40us) EPC efficiency: 90% Automatic restart after fault shutdown EPC adaptable to different tube manufacturers Full operation in vacuum, ambient pressure and critical pressure range Dimensions: 314x158x138 mm (without mounting feet) Mass: 7,5 kg Operating temperature range: -20 to +65°C
