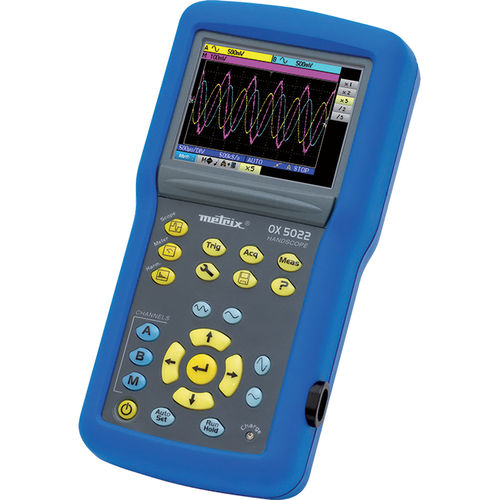

Digital oscilloscope OX 5022B
2-channelportablefor the aeronautical industry

digital oscilloscope
digital oscilloscope
digital oscilloscope
digital oscilloscope
Add to favorites
Compare this product


Characteristics

Input signal
digital
Number of channels
2-channel
Other characteristics
portable
Domain
for the aeronautical industry
Bandwidth

20 MHz

Description

The compact, shockproof, IP54, Handscope Oscilloscope Model OX 5022B can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use. The Model OX 5022B combines three measuring instruments in one: 20MHz oscilloscope Independent 8000-count multimeter with power measurements Built-in harmonic analyzer out to the 31st harmonic (fundamental between 40Hz and 450Hz) 2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month. Isolated USB communication with the SCPI protocol is available. This makes it simple to program the instrument remotely with the supplied SX-METRO software. This product has been developed using an Eco-Design approach to reduce its environmental impact and is supplied with a 3-year warranty. CHANNELS Inputs / Bandwidth - 2 X 600V Isolated channels / 20MHz Input Impedance - 1MΩ ± 0.5%, 17pF INTERFACE Screen Specifications - Color 3.5" TFT LCD 320 x 240 – LED Backlighting Display Mode - 2500 real acquisition points on screen Traces On Screen - 2 Traces + 2 References + memory trace or Math calculation Front Panel Control - 24 keys VERTICAL Vertical Sensitivity - 5mV to 200V/div and up to 156μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 1% Max Input Voltage - 600Vrms CAT III – Derating -20dB per decade from 100kHz HORIZONTAL Time Base Speed - 25ns/div to 200s/div. – accuracy 0.1-Roll mode from 100ms to 200s/div
