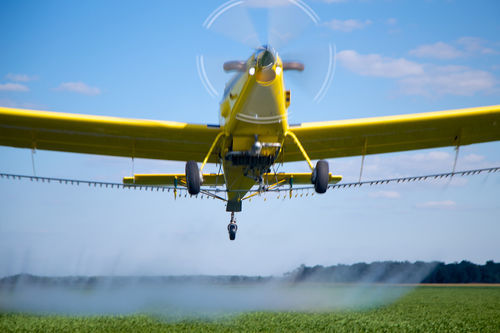

Agriculture aircraft AT-802A

single-engineturbopropsingle-seat

Overview
The Air Tractor AT-802A is a single-engine agricultural aircraft built for high-production aerial application. It combines a large hopper and high useful load with one‑pilot operation to maximise sorties per day and reduce turnaround time for spraying, seeding and other agronomic tasks.

Productivity & Capacity

• Payload / Useful load: 9,249 lbs (4,195 kg)
• Hopper capacity: 800 US gal (3,028 L)
• Fuel capacity: 254 US gal (961 L)
• Designed for one-pilot operation with higher working capacity versus smaller single-engine ag aircraft

Specifications
Engine Type: P&W PT6A-65AG
Engine SHP: 1,295 @ 1,700 RPM
Propeller: Hartzell HC-B5MP-3F/M11276NS
Take-off Weight: 16,000 lbs (7,257 kg)
Landing Weight: 16,000 lbs (7,257 kg)
Empty Weight with Spray Equipment: 6,751 lbs (3,062 kg)
Useful Load: 9,249 lbs (4,195 kg)
Hopper Capacity: 800 US gal (3,028 L)
Fuel Capacity: 254 US gal (961 L)
Wing Span: 59.2 ft (18.04 m)
Wing Area: 401 sq ft (37.29 m²)
Main Wheel Size: 11.00-12
Tail Wheel Size: 17.5 x 6.25-6

Performance
Cruise Speed at 8,000 ft (2,438 m): 191 mph (166 kts)
Working Speed (Typical): 130-160 mph (113-139 kts)
Range – Economy Cruise at 8,000 ft (2,438 m): 610 mi (982 km)
Stall Speed – Flaps Up: 107 mph (92 kts) at 16,000 lbs (7,257 kg)
Stall Speed – Flaps Down: 91 mph (79 kts) at 16,000 lbs (7,257 kg)
Stall Speed as Usually Landed: 63 mph (54 kts)
Rate of Climb: 780 fpm at 16,000 lbs (7,257 kg)
Take-off Distance: 2,000 ft at 16,000 lbs (7,257 kg)

Dimensional drawings
Detailed dimensional drawings and illustrations are available on the product page to support operational planning, hangar fit checks and transport arrangements.

Technical characteristics

• Model: AT-802A
• Manufacturer / Brand: Air Tractor
• Engine: P&W PT6A-65AG, 1,295 SHP @ 1,700 RPM
• Propeller: Hartzell HC-B5MP-3F/M11276NS
• Take-off / Landing Weight: 16,000 lbs (7,257 kg)
• Empty Weight (with spray equipment): 6,751 lbs (3,062 kg)
• Useful Load / Payload: 9,249 lbs (4,195 kg)
• Hopper Capacity: 800 US gal (3,028 L)
• Fuel Capacity: 254 US gal (961 L)
• Wing Span / Area: 59.2 ft (18.04 m) / 401 sq ft (37.29 m²)
• Performance: Cruise 191 mph (166 kts); Typical working speed 130-160 mph (113-139 kts); Range 610 mi (982 km)
