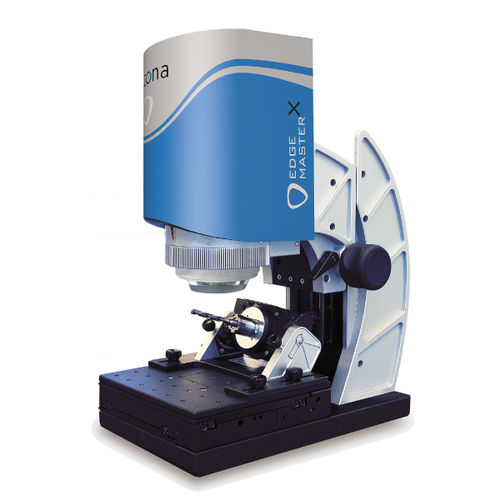

Optical coordinate measuring machine EdgeMasterX
for aeronautics3D

optical coordinate measuring machine
optical coordinate measuring machine
optical coordinate measuring machine
Add to favorites
Compare this product


Characteristics

Probe type
optical
Other characteristics
for aeronautics, 3D
X travel

50 mm
(2 in)

Y travel

50 mm
(2 in)

Z travel

155 mm
(6 in)

Description

The EdgeMasterX originates from the Alicona product line for optical, automatic tool measurement in high resolution. It is a fully automated cutting edge measurement system for quality assurance of drills, millers and other round tools to be applied in production. Specifically, the EdgeMasterX enables 3D measurement of multiple cutting edges. When utilized in combination with a motorized rotation unit, users benefit from the measurement of multiple tool edges, even chamfered edges, in one single measurement run. Deviations from a CAD file or reference geometry are indicated through a traffic light system. Measurements are initiated by a single button solution allowing for measurements to be performed without any further user interaction. High measuring point density Up to 500 million measurement points ensure a meticulously detailed measurement with tolerances in the μm and sub-μm range along with large working distance. The high measurement point density of Focus-Variation enables operators to gain a consistently high lateral and vertical resolution across high measurement volumes. Measurement of steep flanks Light coming from different directions is used to positively influence a measurement. The measurement of the maximum flank angle is not restricted by the numerical aperture of an objective. Depending on the surface users measure surfaces with slope angles up to 87°.
