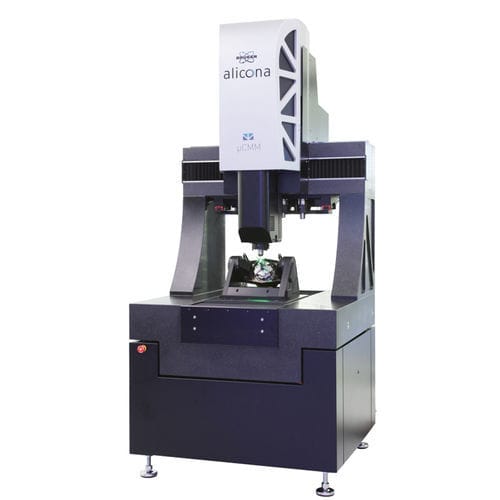

Optical coordinate measuring machine µCMM
non-contactfor aeronautics3D

optical coordinate measuring machine
optical coordinate measuring machine
Add to favorites
Compare this product


Probe type
optical, non-contact
Other characteristics
for aeronautics, 3D
X travel

310 mm (12 in)

Y travel

310 mm (12 in)

Z travel

310 mm (12 in)


µCMM, the first purely optical CMM machine, is used to measure extremely tight tolerances in high accuracy. Users combine advantages from tactile coordinate measuring technology and optical surface measuring technology and measure the dimension, position, shape and roughness of components with only one sensor. The optical CMM offers high geometric accuracy of several optical 3D measurements in relation to each other, enabling the measurement of small surface details on large components and precisely determining the position of these individual measurements in relation to each other. The spectrum of measurable surfaces includes all common industrial materials and composites such as plastics, PCD, CFRP, ceramics, chrome, silicon. Simple operation is implemented by single-button solutions, automation and ergonomic control elements such as a specially designed controller. Air-bearing axes with linear drive enable wear-free use and highly accurate, fast measurements. Intuitive usability, designed for multiple users The spectrum of measurable surfaces is largely material-independent and includes all materials and composites commonly used in the industry, from matte to polished or mirrored components. Dense non-contact and material-independent measurement Alicona measurement systems offer the functionalities of a surface- as well as a coordinate measurement system combined into one system. As a result, your quality assurance becomes more cost effective, is easier to execute and delivers results more efficiently. Wear-free and efficient use All components, including the moving axes, operate contact-free.
