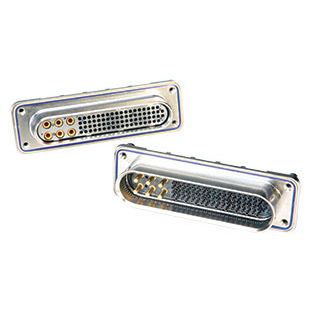

Hybrid connector

for aircraftsquarerugged

This connector series utilizes Amphenol’s durable and reliable B3 contact system in a rugged, non-floating Rack and Panel connector. Included in this series are digital and power/digital “hybrid” insert arrangements. The hybrid series utilizes Amphenol’s high performance RADSOK® power contacts along with Amphenol’s proven B3 contact. FEATURES & BENEFITS High performance B3 brush contacts 0.100 inch x 0.100 inch square grid footprint Environmentally sealed at connector interface when mated (optional feature) Environmentally sealed connector mounting interface EMI protection is available at mounting surfaces and connector interface ESD protection is available – allows use of Class 3 hardened chips (4KV max. voltage) Tapered mating surface provides near zero X & Y plane movement between mated connectors
