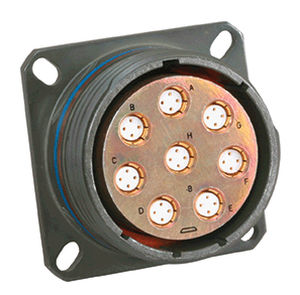

PCB connector
for aircraftquadraxtwinaxial

PCB connector
PCB connector
Add to favorites
Compare this product


Characteristics

Type
PCB
Applications
for aircraft
Format
quadrax, twinaxial, EN2997
Shape
circular
Other characteristics
high-speed, shielded
Voltage

Min.: 0 V

Max.: 6,000 V

Description

Amphenol Connectors are ideally suited for the incorporation of shielded contacts for high performance interconnection applications. The circular family is built around MIL-DTL-38999 specifications, with Mil-approved and commercial styles offered. Normal operating voltage for circulars with power contacts only is up to 900 VAC (RMS) at sea level. The MIL-DTL-38999 family offers these features for contact termination flexibility: Widest selection of insert arrangements that can incorporate: Size 8 high speed Quadrax and Differential Twinax contacts for MIL-DTL-38999 Series III (specially modified to accommodate keyed contacts) Transition adapters for use in attaching D38999 Series III connectors with high speed quadrax or differential contacts to PCB boards Wide selection of connector shell styles and sizes Scoop-proof recessed design in LJT-R, TV-R and SJT-R connectors provide protection for contacts
