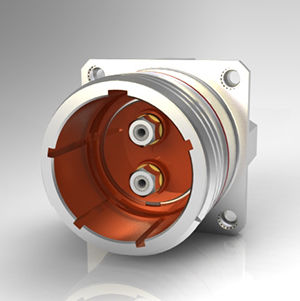

Data connector CTF-QUAD
PCBfor aircraftARINC

data connector
data connector
data connector
data connector
data connector
Add to favorites
Compare this product


data, PCB
for aircraft
ARINC, fiber optic, quadrax, EN2997
Other characteristics


Print Email Amphenol Aerospace adds CTF-QUAD to the CTF (Copper to Fiber) Media Converter Product Family. This product line utilizes standard quadrax receptacle connectors and inserts. CTF-QUAD-2 The CTF-QUAD product line is fiber to copper and copper to fiber media conversion in quadrax form factor pins for standard D38999 quadrax insert arrangements. FEATURES AND BENEFITS: Quadrax form factor embedded fiber optic transmitters and receivers Replace any quadrax pin in receptacle and configure with media conversion copper to fiber and fiber to copper Utilizes standard quadrax receptacle connectors and inserts CTF-QUAD-3 FIBER INTERFACE: Industry standard 1.25mm fiber optic ferrules (LC & ARINC-801) Plug/socket side utilizes quadrax socket to ARINC-801 pin adapter for system fiber connection CTFQUAD-2 COPPER INTERFACE: Speed support from DC to 10 Gbps in both transmitter and receiver PCB lead connection to customer circuit board or PCB lead connection to flex with nano RUGGEDIZATION: ctf-quad Industry standard rugged transmitters and receivers -40˚C to +85˚C Components epoxy sealed in place
