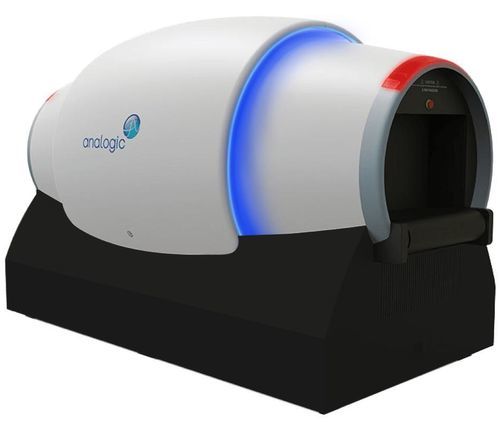

X-ray inspection system ConneCT™

3D2Dfor materials

Overview
The ConneCT checkpoint security system is an aviation-grade CT explosive detection system (EDS) delivering full 3D imaging for threat detection, designed for high passenger throughput and straightforward upgrade from 2D X‑ray scanners.

Key points

• Designed for high throughput, flexible integration, and scalable deployment.
• Combines full 3D CT imaging with advanced EDS threat detection software to reduce false alarms and minimize passenger liquid and electronics divestment.
• Based on decades of CT imaging innovation and mature threat-detection algorithms.

Features

• Full 3D high-resolution imaging for precise material discrimination and reduced false alarms.
• High-speed conveyor operation engineered for elevated tray throughput.
• Remote image analysis: interoperable network architecture enabling cross-lane and remote image review and system monitoring.
• Compact footprint for airport upgrade paths from existing 2D X‑ray checkpoints.

Performance & Certifications

• Throughput: up to 660 trays per hour at a 15 cm/s conveyor speed.
• Tunnel dimensions: 62 cm (width) × 42 cm (height).
• Maximum bag length: 100 cm.
• Certifications: TSA CPSS certified; EU Standard 3 approved.

Market & deployment highlights

• First U.S. installed checkpoint CT.
• Over 1 billion bags scanned by Analogic EDS solutions.
• Approximately 2,000 CT units deployed globally.
• Supplied to 26 countries.
• Analogic EDS processes roughly 50% of scanned baggage in market coverage.

Technical specifications

• Product name / model: ConneCT
• Imaging: Full 3D high-resolution CT imaging with advanced EDS threat detection software
• Max throughput: up to 660 trays per hour (at 15 cm/s conveyor speed)
• Conveyor speed reference: 15 cm/second (throughput figure given at this speed)
• Tunnel dimensions: 62 cm (width) × 42 cm (height)
• Maximum bag length: 100 cm
• Certifications: TSA CPSS certified; EU Standard 3 approved
• Architecture: Interoperable network architecture for cross-lane and remote image analysis and system monitoring
• Primary benefits: improved threat detection, reduced false alarms, increased passenger throughput, optimized operational cost
