Aramid paper honeycomb ARGOSY ARAMID HONEYCOMB

for the aerospace industry

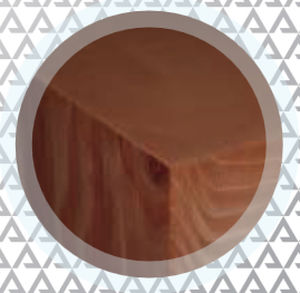

Argosy Aramid Paper Honeycomb Core ARGOSY Aramid Paper Honeycomb Core is a kind of sandwich structure composite made of aramid paper by printing, stacking, thermal pressing, stretching, dipping, curing, slicing, and other machining processes, and by dipping in re-resistant phenolic resin. Aramid paper has a range of features such as good resin inltration. high specic strength and stiness, excellent corrosion resistance and self-extinguishment, better weather resistance and insulation, good penetrating electromagnetic wave property, and high stability. It is available in dierent cell sizes such as 3.2 mm, 4.0 mm, 4.8 mm, 6.4 mm and 9.6 mm, with the density ranging from 24 kg/m3 to 144 kg/m3. It has regular cell sizes, even density and consistent color, and its physical property, mechanical property, and re-resistance property can meet the material standard of civil aircraft. It has passed the professional certication of the aviation industry of China. Automated production line (annual capacity 5000 m3) can produce large-sized honeycomb up to 2,440 mm(W), 1,220 mm(L), and 914 mm(H), leading the industry’s eciency and technology.
