Automatic sliding door RT1000

Overview

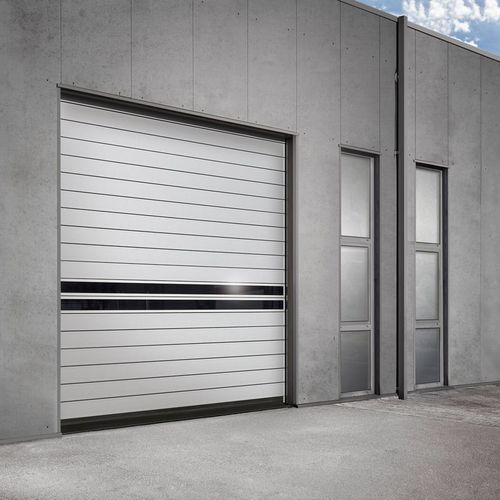

The ASSA ABLOY Spiral Door RT1000 is a high-speed insulated external spiral door engineered for rapid access, thermal control and demanding outdoor conditions in industrial and logistics environments.

Key features

• Single-track spiral system with high-velocity glide assembly for rapid, smooth operation
• Integrated drive unit to save installation space
• Quick brake release for fast, controlled stopping
• Flush curtain design with no visible hinges
• Durable components and service-friendly layout for simplified maintenance

Design and performance
Insulated reinforced curtain and robust frame construction preserve climate control and improve energy efficiency. The RT1000 uses 50 mm high-density foam insulation, side-frame and lintel sealing, and double-glazed vision panels framed in anodized aluminium to limit heat loss and increase security. The door is designed for high wind resistance and external use.

Applications
Suitable for high-speed external openings in distribution centres, logistics hubs, manufacturing sites and other fast-paced facilities requiring rapid access, thermal performance and durability.

Serviceability & maintenance
Service-oriented design provides easy access to springs and key components to facilitate maintenance and extend service intervals. An integrated motor option reduces space requirements. Horizontal vision panels are available to provide external visibility while maintaining insulation.

Technical specifications

• Model: RT1000
• Door type: High-speed spiral external (rigid) door
• Spiral system: Single-track spiral with high-velocity gliders
• Drive: Integrated drive unit
• Insulation: 50 mm high-density foam
• Windows: Double-glazed panels with anodized aluminium frames; horizontal vision panels available
• Safety / braking: Quick brake release
• Design: Flush curtain, no visible hinges
• Serviceability: Easy access structure for efficient maintenance
• Wind resistance: Designed for superior wind resistance (refer to product standards)
• Typical maximum door dimensions: up to 5000 x 5000 mm
• Opening speed: High-speed operation (see product data for exact values)
