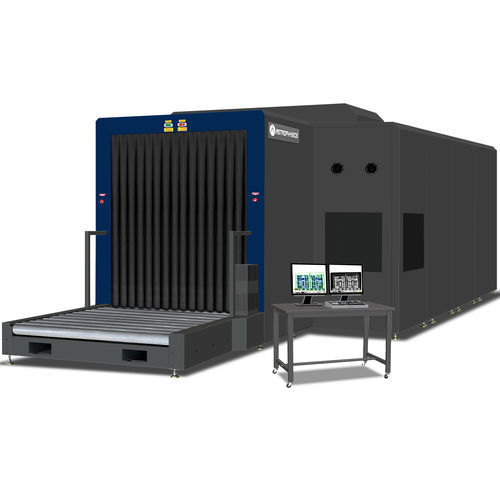

Baggage scanner XIS-1517DV 320kV™

for cargoinspectionfor airport

PRODUCT HIGHLIGHTS

• Dual-view imaging
• 320kV generators with increased steel penetration
• Heavy-duty roller bed
• High-resolution images with 24-bit color
• Multi-colored material discrimination
• Windows Operating System with Intel® Core™ Processor
• Real-time diagnostics
• High-contrast image analysis

PRODUCT INFORMATION
The XIS-1517DV 320kV™ is a dual-view x-ray inspection system designed to scan baggage and hold cargo. Its generators deliver improved steel penetration and its heavy-duty roller bed speeds up freight loading and unloading. The XIS-1517DV 320kV™ dual imaging system provides operators with two independently manipulable views, allowing simultaneous examination with separate imaging filters. Combined with Astrophysics’ best-in-class software, the XIS-1517DV 320kV™ helps operators recognize objects, discriminate materials and isolate threats with greater speed and accuracy.

SPECIFICATIONS

• Generator: Dual 320kV
• Tunnel Size: 152.4 cm x 170.2 cm (60.0” x 67.0”)
• Length: 1069.4 cm (421.0”)
• Width: 281.1 cm (110.7”)
• Height: 304.8 cm (120.0”)
• Heavy-duty roller bed to speed freight loading and unloading
• High-resolution images with 24-bit color
• Multi-colored material discrimination
• Windows Operating System with Intel® Core™ Processor
• Real-time diagnostics
• High-contrast image analysis
