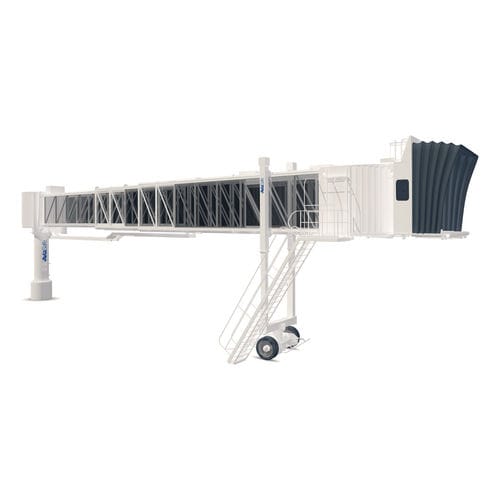

Passenger boarding bridge AviaBridge 3T
with window walls

passenger boarding bridge
passenger boarding bridge
passenger boarding bridge
Add to favorites
Compare this product


Characteristics

Applications
for passengers
Type
with window walls

Description

APPLICATION Apron Docking & Boarding COMPLIANCE with International Civil Aviation Organization (ICAO) and in particular Annex 14 Federal Aviation Administration (FAA) AC No. 150/5220-21C American Society of Testing Materials (ASTM) International Electric Committee (IEC) US National Electrical Manufactures Association (NEMA) US National Fire Protection Association (NFPA417) American Welding Society (AWS) Steel Structures Painting Council (SSPC) Society of Automotive Engineers (SAE) Fully Extended - Fully Retracted - Travel - Max OP Limit - Min OP Limit 20.0m - 11.5m - 8.5m - 18.4m - 12.4m 23.5m - 13.0m - 10.5m - 21.9m - 13.9m 27.0m - 14.5m - 12.5m - 25.4m - 15.4m 30.5m - 16.0m - 14.5m - 28.9m - 16.9m 34.0m - 17.5m - 16.5m - 32.4m - 18.4m 37.5m - 19.0m - 18.5m - 35.9m - 19.9m 41.0m - 20.5m - 20.5m - 39.4m - 21.4m 44.5m - 22.5m - 22.5m - 42.9m - 22.9m DESIGN PARAMETRS Dimensional Charasteristics: (Minimum Dimesions) Tunnels (Minimum "A" tunnel only) - - Rotunda Interface Floor - Width - 1.5m - - Width - 1.5m Interior - Height - 2.1m - - Height - 2.2m Inerior Cab - Width - 3.5m OPERATIONAL CHARACTERISTICS Rotunda Swing - - 175°(87.5°cw/87.5°ccw of centerline) Cab rotation - - 122.5°(90°ccw/32.5cw) Cab roation speed - - 3°/sec. Vertical rate of travel/lift - Automatic - 0.9m/min Manual - 1.5m/min Horizontal rate of travel - - 0~0.4m/s - - - - Environmental Charastristics Bridge operations at tempretures from -20°C to 50°C - - - - - Power Requirements 380 VAC , 3 Phase , 50 Hz
