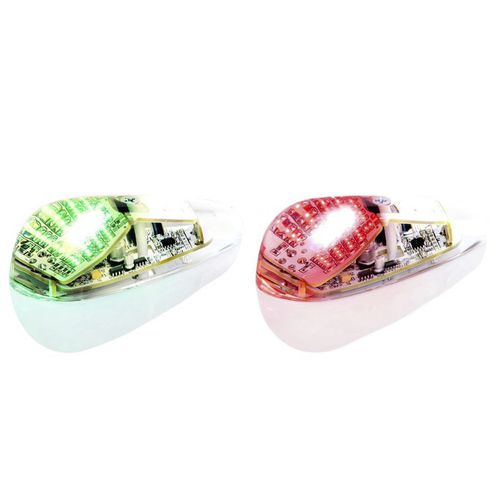

Navigation light SKY NAV

for aircraftLEDgreen

Sky Nav wingtip lights are navigation lights (red & green) with synchronized strobe light. They are designed for LSA, Ultralight, KIT and Experimental aircraft. The lights are very compact and efficient, always ensuring you to be clearly visible in the air. The Sky Nav lights have synchronized strobe light controller integrated in the lamp capsule. The installation and connection process is much faster, easier and you don't have to look for an extra space for external strobe controllers. Sky Nav monolith encapsulation ensures that the lamp is water and vibration resistant. The state of art construction does not allow any dust to come into the lamp and moreover its electronics is protected against reverse polarity connection. Advanced optics together with special reflection system and high brightness CREE LEDs are providing outstanding performance and brightness output much higher than required. Sky Nav lights can be powered with wide range of voltage. No matter if your aircraft has 22V or 28V power supply. Navigation light - YES (red/green) Strobe light - YES (white) Strobe light synchronization - YES Voltage range - 22 V - 28 V Weight (2 lamps) - 160 g Operation temperature range - - 35°C to + 60°C Current - navigation light (2 lamps) - 0,3 A Current - strobe light (2 lamps) - 2,6 A in peak Input power - navigation light (2 lamps) - 4,2 W Input power - strobe light (2 lamps ) - 40 W in peak Navigation light angle - 110° Nav light luminosity (per lamp) - 450 lm Strobe light luminosity (per lamp) - 3100 lm Encapsulation - Monolith of UV resistant epoxy resin Strobe control unit - Lamp built in
