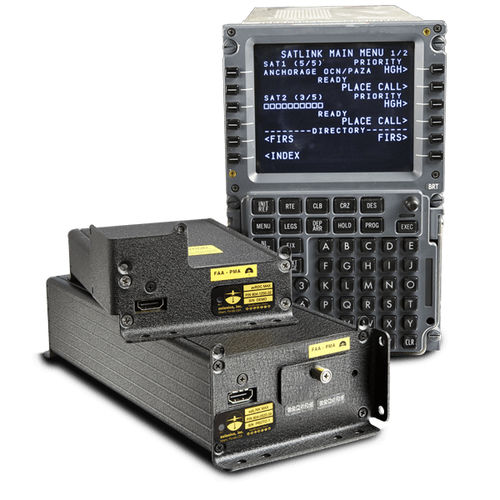

Aircraft inflight connectivity satLINK MAX

aircraft inflight connectivity
aircraft inflight connectivity
aircraft inflight connectivity
Add to favorites
Compare this product


for aircraft


satLINK MAX provides up to four channels of Iridium™ satellite-based voice and data communications. Truly global, reliable, affordable, real-time datalink and voice communications are finally possible. From ATS voice to complete FANS-1/A integration, satLINK MAX is your SATCOM solution Size/Weight/Conformities Dimensions: 9.82 (L) x 4.24 (W) x 2.58 (H) inches Weight: 2 lbs 5 oz Conformities DO-262, DO178, DAL D Interfaces • 4 Switched 10/100 Mbit Ethernet ports • 1 ARINC 717 receiver (recordable) • 1 RS 422 receiver (recordable) • 9 ARINC 429 receivers (3 recordable) • 7 ARINC 429 transmitters • 4 RS 232 receivers • 5 RS 232 transmitters • 10 programmable (input/output) ARINC 410 discretes • 4 RTCA DO-214 audio input (with microphone bias) • 4 RTCA DO-214 audio output • STCs: B737, B757, B747 (1Q2017), B767, B777, A320 (2Q2017), A330 (3Q2017) • Optional 802.11 Cabin Wireless LAN Unit (CWLU) • Optional 802.11 wireless SIP VoIP call management support • Optional 4G Wireless Terminal LAN Unit (TWLU)
