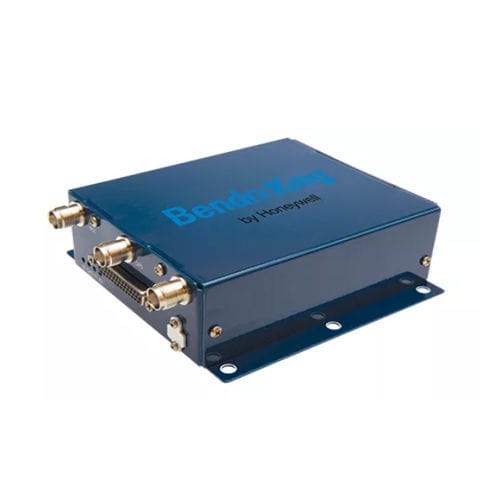

ADS-B receiver KGX 150

transceiverweatherfor aircraft

The BendixKing KGX ADS-B solutions are flexible, certified and affordable The KGX 150 series of UAT transceivers and receivers offer an ADS-B OUT certified solution with an integrated WAAS GPS as well as the ADS-B IN features of Traffic and Weather along with optional wireless connectivity. The KGX 130 offers the same capability for aircraft that already have a compatible ADS-B compliant WAAS GPS solution. Designed to maximize inside-the-cockpit configuration flexibility and outside-the-cockpit situational awareness, the KGX ADS-B wired and wireless solutions will integrate into your aircraft the way you want to fly it. BendixKing stands behind its promise and heritage to deliver reliable avionics systems and meet the pilots’ and aircraft owners’ needs with the KGX 150 and 130 ADS-B certified solutions. Specifications ENVIRONMENTAL COMPLIANCE - DO-160G TSO COMPLIANCE - C154c (A1H/A1S) C157a (Class 1) Incomplete System C195a (Class C1) C145c (B1) - P/ (KGX 150 only) SOFTWARE - RTCA/DO-178B Level C HARDWARE - RTCA/DO-254 Level C Power Required - 10-40 VDC Weight - 0.86 lbs (364 g) [0.98 lbs (454 g) with internal GPS] Width - 5.0 in (127 mm) Height - 1.7 in (43.18 mm) Length - 5.5 in (139.7 mm) OPERATING TEMPERATURE - -40°C to +70°C STORAGE TEMPERATURE - -55°C to +85°C
