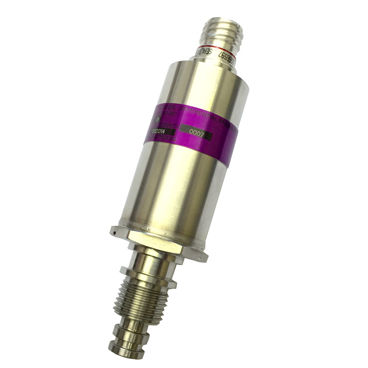

Differential pressure sensor TRD Series
mVVmA

differential pressure sensor
differential pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Output signal
mV, V, mA
Other characteristics
OEM
Applications
for aircraft
Domain
for the aerospace industry
Pressure range

Min.: 0 bar (0 psi)

Max.: 414 bar (6,004.56 psi)

Temperature range

Min.: -55 °C (-67 °F)

Max.: 200 °C (392 °F)

Description

Features: -Differential Pressure Measurement -Pressure Ranges: 0-6000 psi, 0-414 BAR -Operating Temperatures: -55°C to 200°C -High Accuracy: ±1.0% F.S. typical -Linearity: ±0.5% of F.S. -Hysteresis: ±0.25% of F.S. Benefits: -Hermetic Stainless Steel Construction -316 SS & 17-4 PH -Amplified Outputs - clean signal, interfaces with all downstream instruments -Temperature Compensation - wider range of accuracy -Long Lige: >1,000,000 Cycles -High Shock & Vibration Resistant -RTCA DO-160G Qualified Flexible Configurations: -Flange or Threaded Pressure Fittings -Single or Multiple Pressure Ports -Outputs: millivolts, volts, milliamps -Media: Gas or Liquids
