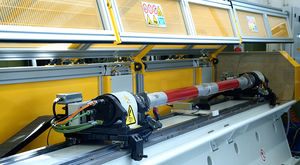

Horizontal balancing machine ZBK200

mechanicalfor aeronauticsautomatic

Overview
CEMB automatic balancer for precision balancing of jet engine shafts. Fully automated system designed for three-plane balancing and direct milling on superalloys, ensuring traceable results compliant with SAE aerospace standards.

Features

• Fully automatic balancing process, from imbalance detection to correction, without manual intervention.
• Direct milling correction on superalloys, suitable for aerospace-grade materials.
• Three-plane balancing capability for complex jet engine shaft geometries.
• High-precision mechanical and control design to minimize cycle times while maintaining accuracy.
• Dedicated software with configurable programs, secure data storage and full process traceability.
• Compliant with SAE aerospace standards for measurement and balancing.
• Integrated safety and automation features for reliable industrial operation.

Options

• Aero equipment (SAE ARP4163): drive shafts, support systems and engine module positioning accessories for aerospace workflows.
• Master SAE: reference rotors for calibration and verification according to SAE standards.
• Motorized media translation: motorized translation of supports on the pallet for rapid production changeover and precise positioning.
• SAE saddle bearing: aviation rotor mounts compliant with SAE to ensure stability and accurate unbalance measurement.

Technical data
Model: ZBK200/TO/S/AERO
Maximum rotor weight (kg): 200
Maximum rotor diameter (mm): 500
Length of supports (mm): 3050

Technical specifications

• Model: ZBK200/TO/S/AERO
• Maximum rotor weight: 200 kg
• Maximum rotor diameter: 500 mm
• Length of supports: 3050 mm
• Balancing capability: three-plane balancing
• Correction method: direct milling on superalloys
• Software: dedicated, configurable programs with data storage and full process traceability
• Standards: compliant with SAE aerospace requirements
• Design priorities: full automation, high accuracy, safety and industrial reliability
